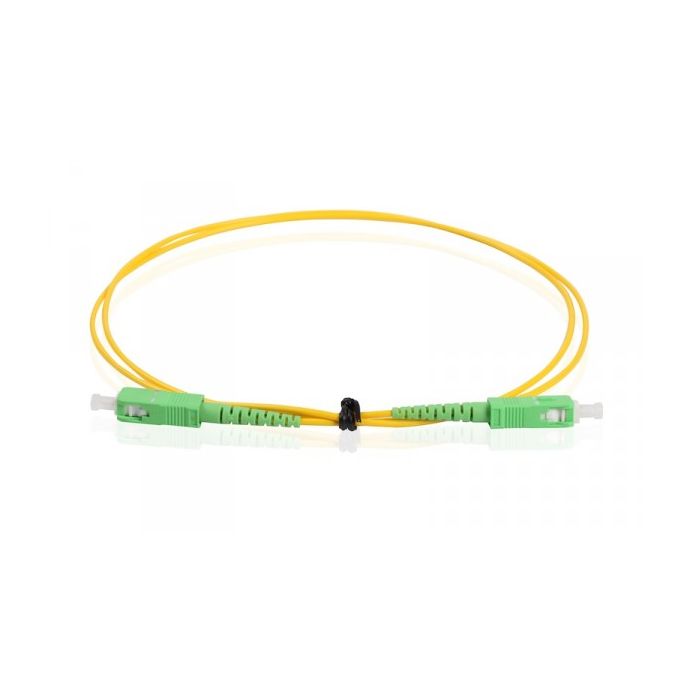

The fiber optic cable of 5 meters allows us to transmit optical signal from one device to another, which are separated from each other by a distance of 5 meters.
This fiber optic hose can be used both inside and outside, has an outside diameter of 3 mm and can be used in installations with known lengths.
This fiber-optic hose allows the connection of two devices separated from each other by a distance of 5 meters.
What technical characteristics does the fiber optic hose have?
Single-mode fiber optic patch cord G657-A2, 9/125 μm 3 mm
Connectorized SC / APC to SC / APC
LAN and MAN
CATV system
Digital communication system
Compliant with ICT2
Insertion loss: <0.3 dB
Return loss:> 60 dB
Cover LSZH
What connectors does this patch cord use?
It uses a SC connector, which is a low loss optical fiber connector, widely used in SM installations and CATV and Network applications, which was designed for use in high vibration environments, and APC (angular) polishing favors the coupling between two fibers on a surface inclined to 8 degrees. This causes the light transition reflections not to return to the fiber core, which increases the return loss to values greater than 60 dB.
