Patch Panel 19' 24 Empty UTP RJ45 Ports Tecatel

SKU
PANEL24UUTPC6
Brands: Tecatel
€57.04 Tax included
Availability: In stock
24/48 Hours

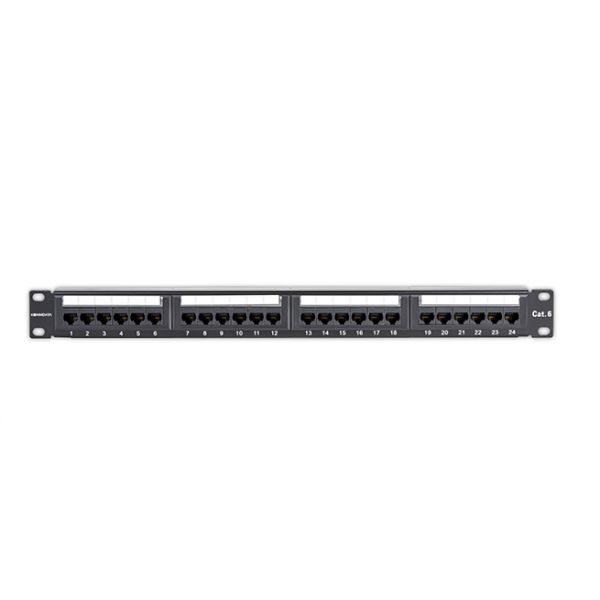

Patch Panel 19' 24 Empty RJ45 UTP Ports Category 6

Empty panel with 24 RJ45 ports for 19” rack cabinet and 1U height. The fact that the panel is empty means that it is not equipped with the female RJ45 connectors.

This panel is used to interconnect the LAN cables with each other. It allows each connection to be organized and managed. In addition to mixing different types of connectors such as CAT5E, CAT6 or CAT6A, optimizing space in the rack cabinet.

The panel has 24 empty integrated Category 6 ports, made of black steel.

-
+

Technical Specifications of the Patch Panel 19' 24 Empty RJ45 UTP Ports Category 6

19" 24-port panel for patching category 6, UTP. Category 6 according to performance class up to 250 MHz EIA/TIA 568 and ISO/IEC 11801. 8P8C RJ45 sockets. Cable installation using LSA bands, color codes according to EIA/ TIA 568 A & B. Occupies 1U.Panel 24 female RJ45 C6

Features:

• Suitable for mounting in 483 mm (19 ") rack format
• RJ45 female, 8P8C
• Cable installation using LSA strips, color coded according to EIA / TIA 568 A & B

Mechanical properties:

• Housing material: 1.5 mm galvanic cold rolled steel, to EN1.4301, UNS S30400, AISI 304 and LMSAD110
• RJ45 female material: ABS UL 94V-0
• RJ45 female contact: 0.5μ gold-plated contact
• RJ45 protection: tinned bronze
• LSA Termination Clip: Krone LSA +, UL 94V-2, Galvanized Phosphor Bronze
• Ground wire: Not included
• Conductive plate: FR4, UL 94V-0

Physical properties:

• Insertion force: 30N max. (IEC 60603-7-5)
• Holding resistance: 7.7 kg between plug and socket
• Operating temperature: -20 ° C to +70 ° C (ISO / IEC 11801, EN 50173-1, ANSI / TIA / EIA 568 C)
• Female coupling cycles:> 750 sec. According to ISO/IEC 11801, IEC 60603-7-5
• Clamp:> 200 acc. According to ISO/IEC 11801, IEC 60603-7-5
• IDC wire size: 22 - 26 AWG solid conductor and stranded conductor
• Insulation resistance:> 500 MOhm
• Contact resistance: <20 MilliOhm
• Dielectric strength: 1000 VDC (Contact / Contact), 1500 VDC (Contact / Earth)
• Category: CAT 6
• Number of Ports: 24

More Information
EAN 8430549054530
Hight 0.000
Length 0.000
Width 0.000
RED - System Rack Accessories
RED - SERIE 19"
Color Black
Units 1
Width 19"
Rack accessories Panels
Product Brand Tecatel
