PAU Distributor 3 Outputs Connector F 8 dB Televes

SKU
TEL519533
Brands: Televes
€7.64 Tax included
Availability: In stock
24/48 Hours

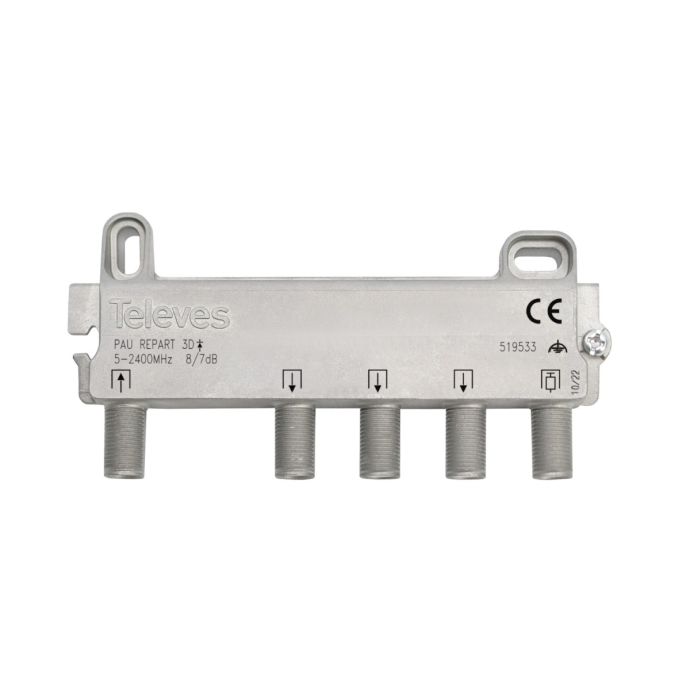

PAU Distributor 3 Outputs Connector F 8 dB Televes

This indoor installation splitter has 3 outputs with F connectors, suitable for SMATV signals. It has good shielding and improves transmission losses.

As it comes with the PAU, it offers an additional 75 Ohms loaded input for the connection of the second downpipe. This user access point for distribution is used in collective ICT-2 installations.

Includes grounding screw and DC pass from output to input. It can also be installed outdoors, as long as we put it inside a chest (TEL4177).

The distributor has an attenuation of 8 dB at 690 MHz. It can be installed on a wall, rack or assembled on a DIN rail. Its armored casing is made of zamak, providing great shielding.

-
+

Technical Specifications of the PAU Distributor 3 Outputs Connector F 8 dB Televes



Frequency range MHz 5 ... 2400
Number of outputs   3
Inputs/Bands
TERR SAT
Passage losses dB
8 7
Rejection between departures dB
> 20 > 20
Connectors   "F" female
Max Voltage V 24
Max current mA 350
DC step   out→in
More Information
EAN 8424450268056
Hight 0.080
Length 0.020
Width 0.050
DTT System DTT & SAT Distribution
MANUFACTURER SERIES DTT F-connector
Color Silver
TV-SAT Distribution Equipment UAP
Entorno Interior
TV-SAT Distribution Connection F
Outputs 3
Input signal FI, FM, UHF, VHF
Insertion Loss (dB) 8
Current bypass Yes
Product Brand Televes
