PAU F.O. 4S + 2 F.O. 70m

SKU
TEL231524
Brands: Televes
€58.94 Tax included
% Discount for professionals
Televes
Availability: In stock
24/48 Hours
Be the first to review this product

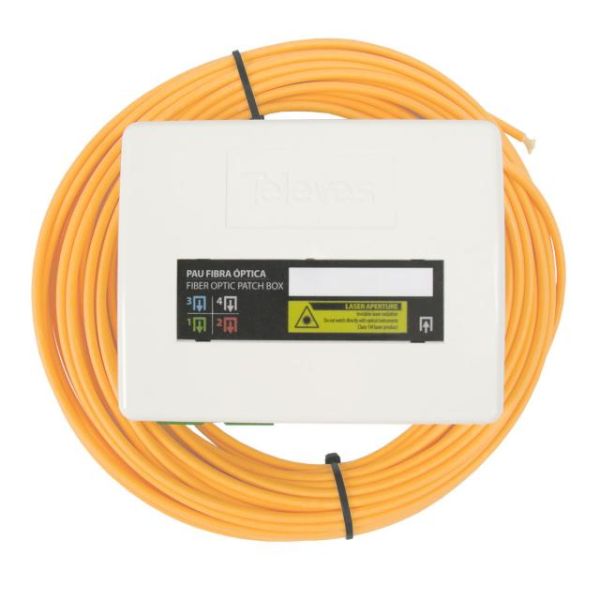

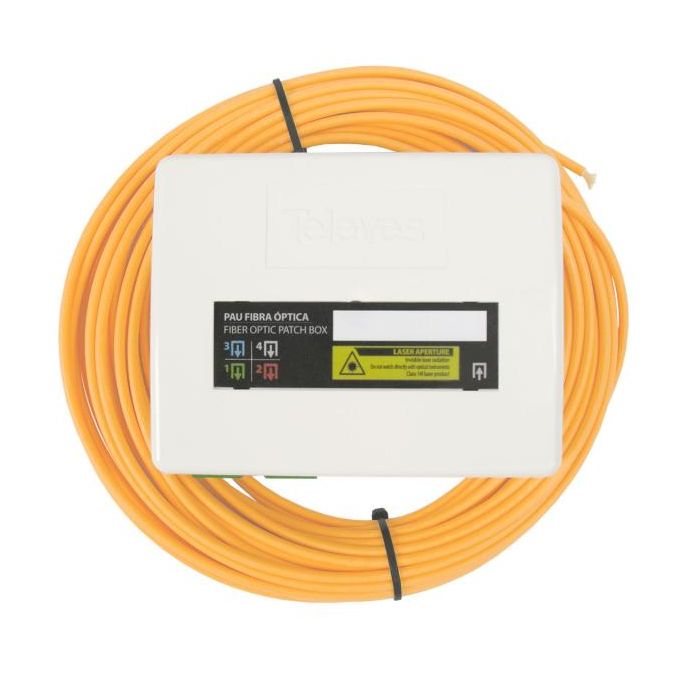

PAU F.O. 4S + 2 F.O. 70m Televes. Ref. TEL231524

Singlemode fibre PAU, with capacity to connect 2 SC/APC outputs, with 2 pre-connected fibres of 35 metres.

Suitable for installation in RTR (Network Termination Register) in new ICT2 construction sites or in other types of installations (connection cabinets, workshops, old buildings).Easy installation for the installer for FTTH (fibre to the home) applications, as it is not necessary to make connections in each PAU, only needing to merge at the lower connection point of the building.

Since this fiber optic PAU is pre-connected at one end only, the installation is done from the RTR to the secondary register and when it reaches the telecommunications enclosure, it is connected to the network interconnection register, performing a fusion with a pigtail. If there is a lot of excess cable, the excess is normally cut before performing the fusion with the pigtail so that the installation is perfectly finished and tidy.

The kit includes in addition to the 35mts fibre cable, 2 heat-shrinkable sleeves, 2 flanges and the necessary hardware for installation.

-
+

Features:

  • Fiber can access the interior by 5 zones (the 4 corners and bottom).
  • appropriate measures to facilitate the installation of fiber optics and small radii of curvature avoid damaging the transmission (losses) dimensions.
  • Guiding the multi-fiber cable it is done from the rear, through multiple attachment points. A terminal block, located on the inside, provides better anchorage. Also, flanges are included if would require a higher level of security.
  • It can accommodate up to 4 cannulas fusion.
  • The SC / APC adapters are incorporating self-locking lid.
  • Its front cover allows easy identification of the fibers by color coding and housing.
Generales
 Entradas  6 entradas pre-cortadas en sus laterales, para el acceso de FO
 1 entrada posterior para conector SC
 1 entrada posterior para FO
 1 entrada pre-cortada por la parte inferior, para el acceso al repartidor (SC/APC)
 Salidas Hasta 4 salidas para adaptadores SC/APC
 Material ABS (Blanco RAL 9003)
 Tipo de anclaje Pared / carril DIN
More Information
More Information
EAN 8424450183779
Hight 0.280
Length 0.065
Width 0.268
System DTT Monomode
Serie 75m
Fiber type Singlemode
Entorno Interior
Color White
Product Brand Televes
