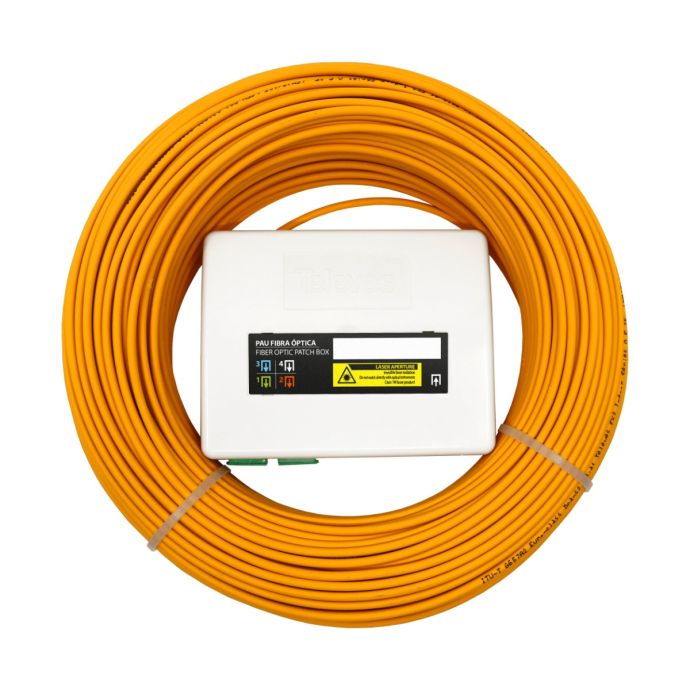

PAU FO 2 SC/APC Outputs + 2 FO Cable Pre-terminated at 1 End 10m LSZH from Televes

SKU
TEL231548
Brands: Televes
€20.70 Tax included
Availability: On request
1 to 7 days

Fiber Optic PAU 2 Outputs SC/APC + 2 fibres 10 Metres Televes 231548

Singlemode fibre PAU, with capacity to connect 2 SC/APC outputs, with 2 pre-connected 10 metre fibres.

Suitable for installation in RTR (Network Termination Register) in new ICT2 construction sites or in other types of installations (connection cabinets, workshops, old buildings).Easy installation for the installer for FTTH (fibre to the home) applications, as it is not necessary to make connections in each PAU, only needing to merge at the lower connection point of the building.

Since this fiber optic PAU is pre-connected at one end only, the installation is done from the RTR to the secondary register and when it reaches the telecommunications enclosure, it is connected to the network interconnection register, performing a fusion with a pigtail. If there is a lot of excess cable, the excess is normally cut before performing the fusion with the pigtail so that the installation is perfectly finished and tidy.

The kit includes in addition to the 10mts fibre cable, 2 heat-shrinkable sleeves, 2 flanges and the necessary hardware for installation.

-
+

Number of fibers   2
Number of inputs   8
Closure type   Cover
Front door locking system   Screw
Type of connections   Connector and fusion splice
Installation type   Wall / Ceiling
Material   ABS Plastic
Thickness mm 2
Colour   White
Protection index (IP)   30
Protection index (IK)   7
Height mm 97
Width mm 119
Depth mm 33
Fiber core type   Single-mode (ITU-T-G.657.A2)
Euroclass   Dca
Euroclass: Smoke Production   s2
Euroclass: Flaming droplets   d0
Euroclass: Acidity   a1
Fiber core diameter μm 9
Fiber cladding diameter μm 125
Coating buffer diameter μm 250
Cable structure   Tight buffer
Plastic buffer diameter mm 0.9
Outer sheath Diameter mm 3.5
Outer sheath Material   LSFH
Blocking jelly   No
Attenuation 1310nm Max dB/km 0.4
Attenuation 1550nm Max dB/km 0.3
Attenuation 1490nm Max dB/km 0.3
Return losses Min dB 60
Short tension N 500
Structure reinforcement element   Aramid fibers
Short crush (@100mm) N 500
Minimum bending radius mm 15
Operating temperature °C -20 ... 70
More Information
EAN 8424450286586
Hight 0.000
Length 0.000
Width 0.000
System DTT Optic Fiber
Serie 10m
Fiber type Singlemode
Entorno Interior
Color White
Product Brand Televes
