Pau of 7 outputs with loss of 8.2 to 15.9 dB

SKU
ANTPTR207
Brands: TDTprofesional
€7.56 Tax included
Availability: In stock
24/48 Hours

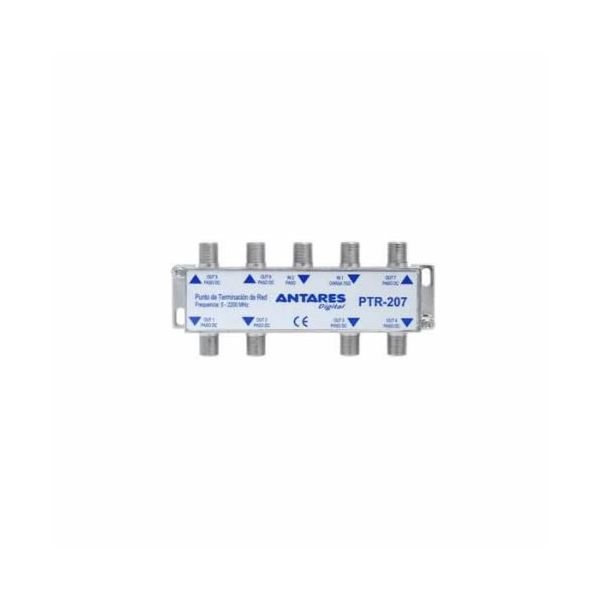

Termination point of 7 outputs with loss of 8.2 to 15.9 dB

The user access point PTR-207 allows one of the two cables of the dispersion network to be selected in the ICT installations. One of the two inputs is connected to a load of 75 Ω, while the second is connected directly to our internal network.

This PAU is of a small size, with conventional type F connection and allows working in the frequency range of 5 to 2400 MHz.

The PTR207 PAU also has low attenuations and very high shielding efficiencies.

-
+

The PTR207 PAU has seven outputs with low attenuation, making it perfect for working at any frequency between 5 and 2400 MHz.

What technical characteristics does the PAU PTR207 have?

  • Small size.
  • Conventional type F connection.
  • Frequency range: 5 ... 2400 MHz.
  • Low attenuations and very high shielding efficiencies.
  • High performance at high frequencies.
  • High isolation between outputs.

What technical specifications does the PAU PTR207 have?

  • It has 7 exits.
  • Loss of insertion:
    • 8.2 dB in the frequency range of 5 to 40 MHz.
    • 11.8 dB in the frequency range of 40 to 862 MHz.
    • 14.1 dB in the frequency range of 950 to 1750 MHz.
    • 15.9 dB in the frequency range of 1750 to 2400 MHz.
  • Rejection between outputs:
    • 30 dB in the frequency range of 5 to 40 MHz.
    • 25 dB in the frequency range of 40 to 1000 MHz.
    • 25 dB in the frequency range of 1000 to 2400 MHz.
  • Return Loss:
    • 20 dB in the frequency range of 5 to 40 MHz.
    • 16 dB in the frequency range of 40 to 1000 MHz.
    • 15 dB in the frequency range of 1000 to 2400 MHz.
More Information
EAN 8401300258719
Hight 0.000
Length 0.000
Width 0.000
DTT System DTT & SAT Distribution
MANUFACTURER SERIES DTT F-connector
Color White
TV-SAT Distribution Equipment UAP
Entorno Interior
TV-SAT Distribution Connection F
Input signal DAB, FI, FM, UHF, VHF
Insertion Loss (dB) 16
Current bypass No
Product Brand TDTprofesional
