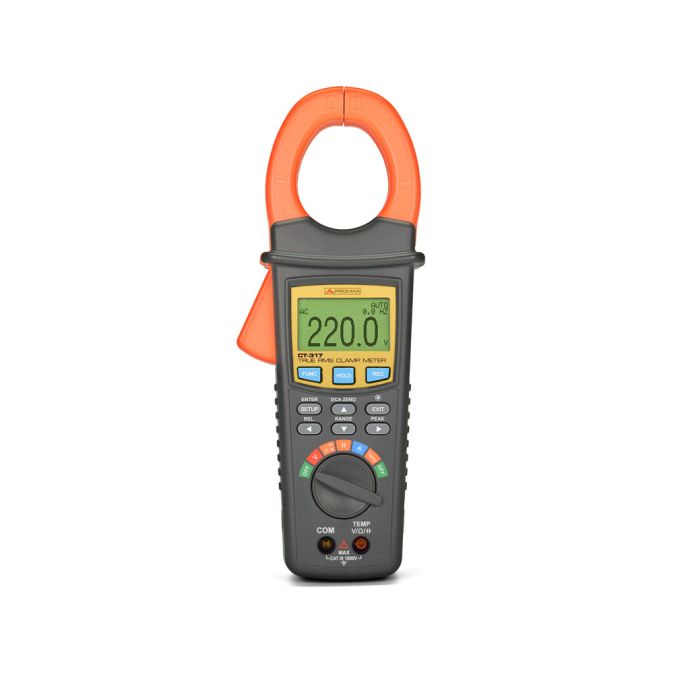

Photovoltaic Current Clamp 1000V 2000A

SKU
PROCT317
Brands: Promax
€457.38 Tax included
Free shipping
(Iberian Peninsula)
Availability: In stock
24/48 Hours

Self-consumption Clamp Meter 1000V and 2000A

Tool for self-consumption photovoltaic installations, whether they are private buildings such as buildings or other locations. The clamp can perform various tests and measurements by recording the day and time the measurements were taken. These measurements will be stored on a microSD card (includes an 8GB capacity), configuring a time between samples between 2 and 7200 seconds.

The clamp can measure: DC/AC TRMS voltage, DC/AC TRMS current, diode test, continuity measurement, frequency, resistance, capacity, temperature, datalogger.

It includes software that will allow you to convert the data to MS Excel.

This tool comes with the following accessories: Test leads, Alligator clips, USB cable, RS-232 cable, Measurement acquisition software, Temperature probe, 8 GB microSD card, Carrying bag, AC adapter.

-
+

Technical Specifications of the 1000V and 2000A Self-Consumption Clamp Meter



STRAIN DC / AC TRMS



scales

600 mV / 6 V / 60 V / 600 V / 1000 V

Overload protection

1000 VDC / 1000 VAC TRMS

CURRENT DC / AC TRMS



scales

from 0,5 to 2000 A

overload protection

2100 A withtweezers

ENDURANCE

scales 600Ω, 6kΩ, 60kΩ, 600 kΩ, 6MΩ, 60MΩ

DIODE TEST

  • short circuit/open circuit
    test pass/fail

CONTINUITY TEST

Acoustic indication when the resistance is less than 5 Ω

CAPACITY

Scales 6nF, 60nF, 600nF, 6µF, 60µF, 600µF

FRECUENCY

from 40 to 999,9 Hz

TEMPERATURE(optional)

Scales -100 to 199,9ºC & from 200 to 1300 ºC

INDICATION

Dot matrix LCD display (128x64 pixels) backlit

PRESENTATION FUNCTIONS

HOLD (measurement hold), relative measurement, peak-peak measurement

POLARITY

automatic

OVERMARGIN

(OL) or (-OL) appears on the display, and “999” or “9999” appears on the datalogger (ignoring the decimal separator)

DATALOGGER

Storage of measurements on microSD card (up to 32 GB) with timestamp and export to Microsoft Excel

ØMAX DRIVER

50 mm

FREQUENCY RESPONSE OF THE CLAMPS

from 40 Hz to 1 kHz

ALIMENTACIÓN

2 pilas de 1,5 V tamaño AA o adaptador AC de 9 V

PROTECTION CATEGORY

CATIII (1000 V)

ACCESSORIESINCLUIDOS

Test leads, Alligator clips, USB cable, RS-232 cable, Measurement acquisition software, Temperature probe, 8 GB microSD card, Carry bag, AC adapter

More Information
EAN 230337960004
Hight 0.390
Length 0.110
Width 0.290
Color Gray
Product Brand Promax
System Photovoltaic
SERIE CAT III
