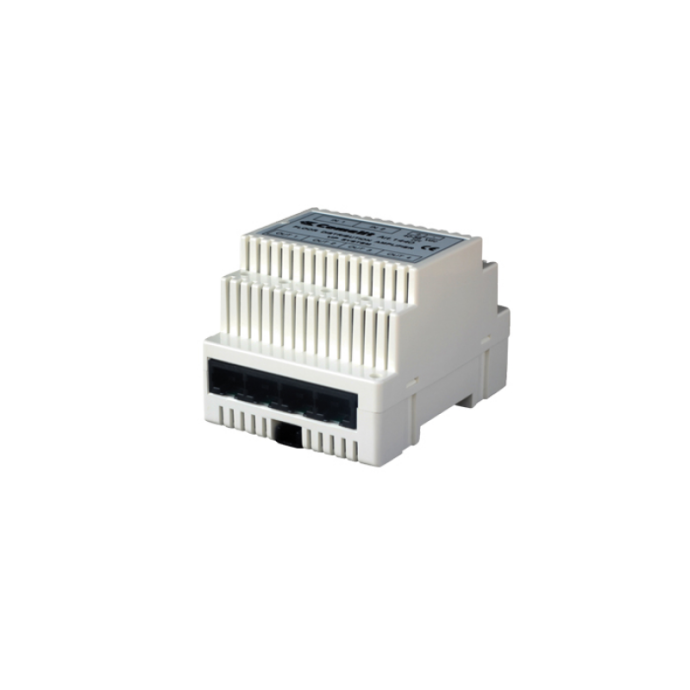

It is a plant tap with one input, one output (10/100 Mb) and 4 taps (10Mb). The shunts are used in the installations of IP systems in the distribution of the signal.
Dimensions: 66x85x35mm in 4 DIN modules.
| MAIN FEATURES | |
| Height (mm) | 89 |
| Width (mm) | 72 |
| Depth (mm) | 62 |
| Operating temperature (°C) | 5 ÷ 40 |
| Operating humidity (RH max) (%) | 25 ÷ 75 |
| DIN rail mounted | Yes |
| DIN modules (no.) (n°) | 4 |
| Supply voltage | 40÷56VDC |
| GENERAL DATA | |
| Product color | White |
| Communication ports | RJ45 (Ethernet) |
| Type of LAN network | Ethernet 10/100 Mbit/s, Ethernet 10 Mbit/s |
| COMPATIBILITY | |
| Vip system | Yes |
| CONNECTIVITY | |
| Type of connections/ports | RJ45 |
| Ethernet ports (n°) | 6 |
| EAN | 8023903209402 |
|---|---|
| Hight | 0.080 |
| Length | 0.080 |
| Width | 0.070 |
| ACCESOS - SISTEMA | VIP (IP System) |
| ACCESOS - SERIE | Spare |
| Color | White |
| Product Brand | Comelit |
| File | Label | Size | Download |
|---|---|---|---|
 | Ficha Técnica Derivador de Planta para Sistema VIP 1440 | 1017.3 KB | Download |
