Power supply 120mA, 24Vc, 2 outputs, F

SKU
ROV86009
Brands: Satélite Rover
€10.71 Tax included
Availability: In stock
24/48 Hours

120mA and 24Vc power supply

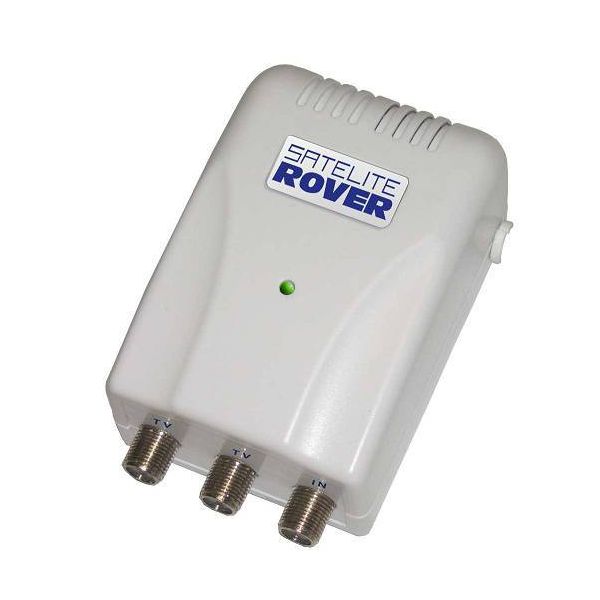

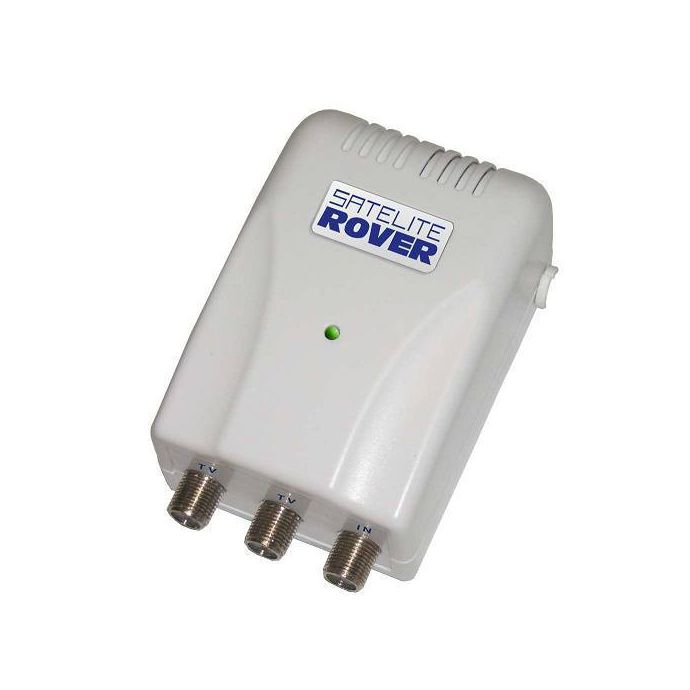

The Satellite Rover 86009 power supply is a reduced-size 120mA and 24Vc power supply that has short-circuit protection.

It has two symmetrical outputs with F connectors, this means that the signal that leaves both outputs is of equal intensity and quality.

The feeder must be an installer in a ventilated place and protected from moisture.

-
+

The power supply supplies 24 Vdc by the same coaxial antenna cable and at the same time distributes the TV signal in two symmetrical outputs.

What technical characteristics does the 86009 feeder have?

  • Inputs / Outputs 1/2
  • Frequency (MHz) 47..862
  • Type F connection
  • Mains voltage (Vac) 230 ± 10%
  • Output voltage (Vdc) 24
  • Maximum current (mA) 120
  • Insertion losses (dB) 4
  • Dimensions (mm) 105 x 110 x 45
More Information
EAN 8430923860092
Hight 0.120
Length 0.050
Width 0.090
DTT System DTT Power Supply
MANUFACTURER SERIES DTT 24Vdc
Color White
Power supply Mast Amplifier
Feed Power 24 Vc
Current (mA) 120
Outputs 2
Product Brand Satélite Rover
