Power Supply DIN6 100-240VAC / 24VDC 2A Fermax

SKU
FER4840
Brands: Fermax
€111.84 Tax included
Availability: On request
1 to 7 days

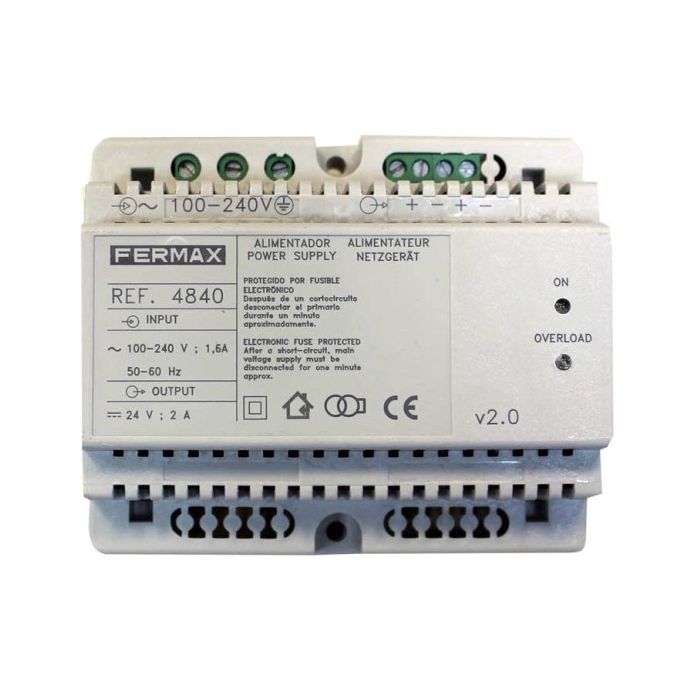

Power Supply DIN-6 24Vdc 2A Fermax 4840

Equipment to power the different elements of a Fermax door entry or video entry system. Compact DIN-6 rail format power supply to facilitate its mounting inside an electrical equipment box or on the wall.

This source supplies a continuous 24V 2A power supply and has 2 outputs. Includes a set of caps to protect the connection terminals.

For Bus 2 or DUOX systems, it requires the connection module, since the power supply and the data go through the same wires. This module prevents the supply from disturbing the rest of the signals and also allows connecting more sources if necessary.

-
+

DIN-6 100-240Vac / 24Vdc 2A power supply for Fermax door entry / video door entry system

What technical specifications does the Fermax 4840 Feeder have?

  • DIN 6 dimensions: 105x 90 x60 mm
  • Input voltage: 100-240 Vac
  • Output voltage: 24 Vdc
  • Maximum output current: 2A
  • Input protection: PTC and 2.3A fuse
  • Output protection: Electronic limitation for overload and short circuit
  • It has two operating indicator LEDs:
    • Led ON lit: indicates that the feeder is working
    • Led OVERLOAD on: indicates maximum current exceeded, (it will be necessary to decrease the load of the installation or add additional power supply (s))
    • ON + OVERLOAD led flashing: indicates short circuit
  • Feeding:
    • BUS 2 system: 24 Vdc
    • DUOX system: 18 Vdc
  • Output current depends on the connected source. Sources up to 3.5 A
  • Input voltage BUS 2 system: 24 Vdc
  • Input voltage DUOX system: 18 Vdc
More Information
EAN 8424299048406
Hight 0.110
Length 0.070
Width 0.100
System DC
SERIE Spare
Color White
Type Power supply
Product Brand Fermax
