Professional Alarm Kit Ajax PIRCAM + Panel + Control + PIR Black

SKU
AJ-STARTERKIT-CAM-MP-B
Brands: AJAX
€523.26 Tax included
Free shipping
(Iberian Peninsula)
AJAX
Availability: On request
1 to 7 days

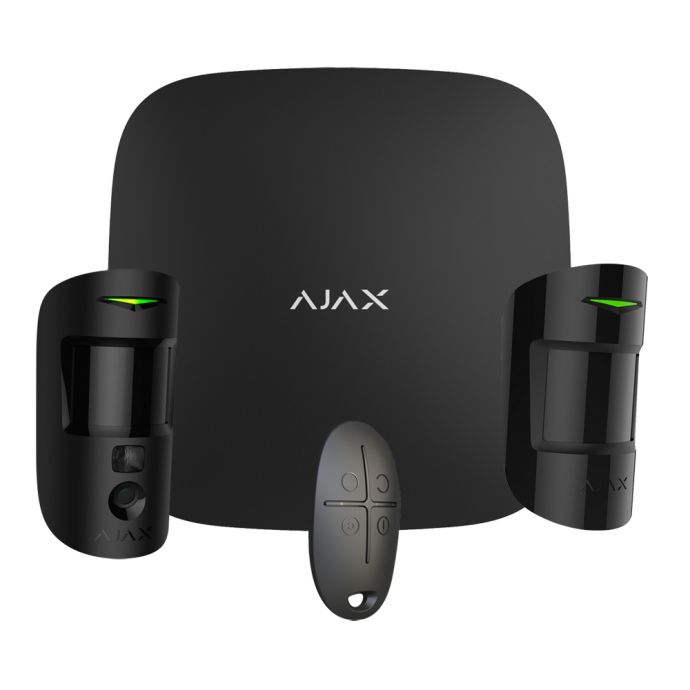

Ajax Starter Kit: Hub2 + PIR Detector + PIRCAM Detector + Remote

Ajax professional alarm kit consisting of a central Hub 2, 2 motion detectors and a black remote control. Provide your home or office with a maximum protection security system.

This alarm, with ethernet communication and dual SIM GPRS, is wireless and works at 868MHz with Jeweler and Wings protocol. This kit allows the visual verification of each alert on your mobile device, since it has a volumetric detector with a camera, with which it will send you photographs when an alert is activated.

The alerts will send notifications to your iOS and Android phone as an SMS message, call to your phone or push notifications. Everything at your fingertips and with your mobile device, you can control the state of the alarm, being able to arm or disarm it, control the kit devices.

Its installation is very fast and easy to configure. Controlled management intuitively through your mobile wherever you are.

In addition, with this kit you can expand up to 100 devices (detectors, sirens, sensors, keyboards, etc.) You can even integrate up to 25 cameras in the system.

And best of all, you won't have to pay monthly fees for this professional security kit. The kit connects to the internet and is managed via mobile with an application that you can download for free, without fees.

Kit Content:

*Control panel AJ-HUB2-B
*AJ-MOTIONCAM-B photodetector
*PIR detector AJ-MOTIONPROTECT-B
*Remote control AJ-SPACECONTROL-B
*Instructions for use

Technical Specifications of the Ajax Starter Kit: Hub2 + PIR Detector + PIRCAM Detector + Remote



AJ-MOTIONPROTECT-B

Brand Ajax
Technology PIR
Security grade Grade 2
PIR lens 24 zones and 6 planes
Detection range 12 m / H: 88.5º / V: 80º / Installation 2.4 m
Frequency 868 MHz Jeweller
Transmission distance ≤ 1700 m in open space
Pet immunity ≤ 20 kg, ≤ 50 cm
Anti-masking No
Sensitivity Adjustable. 3 levels (low, medium and high)
LEDs indication Alarm, tamper, signal
Battery 1 battery CR123A 3.0 V (approximate life time 7 years)
Temp. operation 0º C ~ 50º C
Housing material ABS plastic
Dimensions (without bracket) 110 (H) x 65 (W) x 50 (D) mm

AJ-SPACECONTROL-B

Brand Ajax
Security grade Grade 2
Functions Armed, disarmed, partially armed and panic
Frequency 868 MHz Jeweller
Transmission distance ≤ 1300 m in open space
Battery 1 battery CR2032 3.0 V (approximate life time 3 years)
Housing material ABS plastic
Temp. operation -20º C ~ 50º C
Dimensions 65 (H) x 37 (W) x 10 (D) mm

AJ-HUB2-B

Brand AJAX
RF frequency 868 MHz. Protocol via Jeweller wireless technology
Internal security Tamper-resistant opening
Internal siren No
Communication Ethernet / Dual SIM 2G (GPRS)
Maximum devices 100
Video integration Up to 25 IP cameras or video recorder channels
Number or users Up to 50
Connection with CRA Contact ID / SIA
Compatibility Not compatible with ocBridge and uartBridge
Housing material ABS plastic
Power AC 110~250 V, 50/60 Hz
Backup battery Duration up to 16 hours
Temp. operation +5º C ~ 40º C
Dimensions 163 (H) x 163 (W) x 36 (D) mm

AJ-MOTIONCAM-B

Brand Ajax
Technology Volumetric PIR with photo camera
Security grade Grade 2
PIR lens 24 zones and 6 planes
Detection range 12 m / H: 88.5º / V: 80º / Installation 2.4 m
Frequency 868 MHz Jeweller and Wings (sending images)
Transmission distance ≤ 1700 m in open space
Pet immunity ≤ 20 kg, ≤ 50 cm
Anti-masking No
Sensitivity Adjustable. 3 levels (low, medium and high)
Image resolution Up to VGA (640 x 480)
Number of images Up to 5 images per detection
Sending images Sending and receiving images in less than a minute
Infrared lighting IR for night mode
LEDs indication Alarm, tamper, signal
Battery 2 CR123A3.0 v-batteries (life up to 4 years)
Compatibility AJ-HUB2-W/B
Temp. operation 0º C ~ 40º C
Housing material ABS plastic
Dimensions (without bracket) 135 (H) x 70 (W) x 60 (D) mm
