Professional Field Meter DVB-S2 / S, DVB-T2 / T, DVB-C 7''

Name: Professional Field Meter DVB-S2 / S, DVB-T2 / T, DVB-C 7''
Brand: TDTprofesional
SKU: DD2400
Price: 1151.92 EUR
Availability: InStock

SKU

DD2400

Brands: TDTprofesional

€1,151.92 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

DD24000 Professional Field Meter

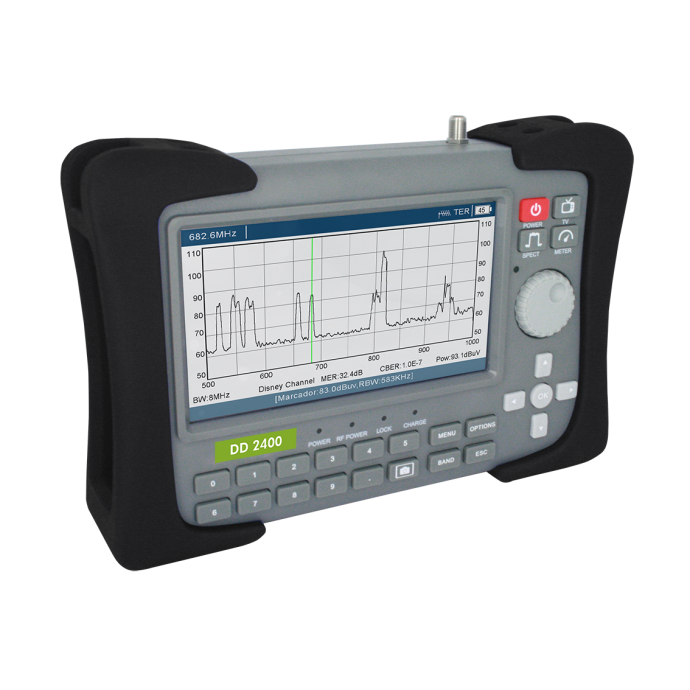

The DD24000 is a field meter designed for professionals who need a reliable and complete device. This meter is compatible with ICT.2 type F and can measure radio signals under DVB-T/T2, DVB-S/S2 (including multistream) and DVB-C standards for SD and HD signals (MPEG2, MPEG4, HEVC). In addition, it allows measurement of signals in the 4G and 5G cell phone bands.

The device provides three types of information during measurement: the measurement itself, spectrum display and video playback (image and sound). Equipped with a high-resolution 7" color LCD display , the DD24000 includes external USB screen capture and automatic brightness adjustment functions.

This meter allows measurements of power, MER, BER (Channel and Viterbi), erroneous packets and noise margin. It is also capable of decoding HEVC (H.265), H.264, MPEG2, SD and HD, and detecting 2.4GHz WiFi networks, displaying the names of the available SSIDs. With a male F input connector and automatic attenuator, it supports channel powers up to 120 dBμV in 5dB steps.

Designed to facilitate the installer's work, the DD24000 is lightweight and ergonomic, with easy-to-use buttons, keys and connectors. Menu navigation is intuitive, allowing selection by program group or by frequency. On its side, it has an HDMI output, a USB connector, an RS.232 port and a power input.

It includes the following accessories:

*External power supply

*Car charger

*Carrying bag

*F-F female adapter and F female-IEC female adapter

*USB memory 8Gb

Details

Technical Specifications of the DD 24000 Professional Field Meter

TECHNICAL CHARACTERISTICS
Monitor	7" inch TFT
Resolution (pixels)	1024*600
Battery	7.4 V 7800 mAh 57.7 Wh
RF input	F male connector 75 Ω
Audio/Video output	HDMI OUTPUT
Power supplied from the meter
Satellite band	0 V, 5 ~ 24 V (Steps1 V)
22KHZ tone	Selectable by satellite band
DiSEqC generator	DiSEqC 1.0/1.1/2.0
Terrestrial band	0 V, 5 ~ 24 V (Steps1 V)
Maximum battery life	6 hours
Power off current	<2 mA
VIDEO DECODING
DECODING	MPEG1, MPEG-2 MP@ML, H.264, VC1, DV, MPEG-4, H.265 (1080p@60fps), EAC3 Dolby DD + codec
AUDIO DECODING
DECODING	MPEG-2 layer I and II (Musiccam), MPEG4 AAC
OUTPUT MODE	Mono, Dual Channel, Stereo, Joint Stereo
MEASUREMENT MODE
Satellite
Frequency range	950~2150MHz
Values	Channel power, Noise margin, MER, CBER, VBER, TS Errors, Constellation
Symbol rate	1 ~ 55 MS/s
Power resolution	0.1 dB
Accuracy	±1.8 dB
MER range	>25 dB
Power range	20~120 dBμV
Demodulation	DVB-S/S2 QPSK, 8PSK, 16APSK, 32APSK, ACM / VCM
Terrestrial
Frequency range	51 ~ 1000 MHz
Values	Channel power, Noise margin, MER, CBER, VBER, TS Errors, Constellation
Bandwidth	6 MHz, 7 MHz, 8 MHz
Power resolution	0.1dB
Accuracy	±1.8 dB
MER range	>35 dB
Power range	30~120 dBμV
Demodulation	DVB-T/T2 COFDM
Wire
Frequency range	51 MHz ~ 1000 MHz
Values	Power, CBER, VBER, MER, Constellation
Symbol rate	6 MS/s
Power resolution	0.1 dB
Accuracy	±1.8 dB
MER range	>35 dB
Power range	30~120 dBμV
Demodulation	DVB-C QAM,J83 Annex C QAM
SPECTRUM ANALYZER MODE
Frequency range	Terrestrial & Cable: 50 - 1000 MHz
	Satellite: 900 - 2200 MHz
Reference level	Terrestrial & Cable: 60~110 dBμV in 5 dB steps
	Satellite: 60 ~110 dBμV in 5 dB steps
Accuracy	±1.8 dB
Span	Terrestrial & Cable: 10, 20, 50, 100, 200, 500, 950 MHz
	Satellite: 10, 20, 50, 100, 200, 500, 1200 MHz
Measurement bandwidths	Terrestrial & Cable: 36, 72, 145, 291, 583, 1166 KHz
	Satellite: 100KHz, 200KHz, 500KHz, 1MHz, 2MHz, 5MHz
Sampling / FTT	1024 Points
INTERFACE
Connectors (right profile)	HDMI 1.4A
	USB 2.0 (MAX 1 A)
	RS232
Connectors (left profile)	DC IN
	Tuner	3 input tuners on a single connector (DVB-S/S2, DVB-T/T2, DVB-C)
Buttons on front panel	4 LED indicators	On/Off, Charge, Lock, RF power
	24 buttons	TV, Spectrum, Meter, Options, Menu, Band, Up, Down, Left, Right ,Enter, Esc, 0-9,., Power
HOUSING (Cabinet)	Dimensions	269 mm (W) x 187 mm (H) x 62.5 mm (D)
Accessories	External power supply	15 V-2.5 A adapter
	Car charger	Yes
	Carrying bag	Included (space for tools and outside pocket)
	F-F female adapter	Yes
