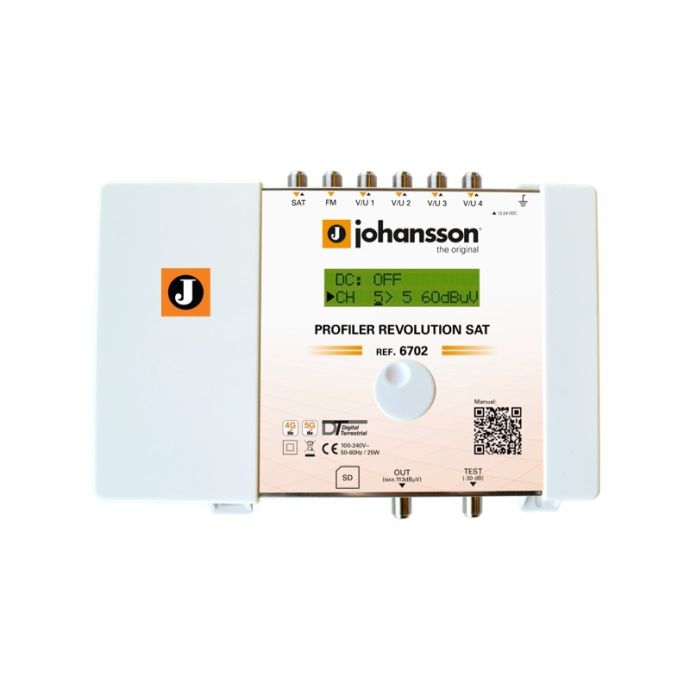

Johansson Profiler Revolution 6702HP Processor Central

Programmable amplifier central with 6 inputs (x4 VHF / UHF + SAT + FM) and High Power (HP) version: with 70dB of gain for VHF/UHF and maximum output level of 131dBμV. For Satellite it offers 40dB and in FM 35dB, like the normal model.

This plant also stands out for its ability to filter and amplify more than 50 different channels (DTT and SAT). Its filters for adjacent channels of 50dB, are the most selective on the market, to prevent noise from entering our TV signal. You can configure up to 32 filters of 1 or 2 adjacent channels.

The 6702HP control panel integrates an entry level reader, so it does not require a field meter for its installation.

As it could not be otherwise, this precasting machine is adapted to the 2nd Digital Dividend, with automatic LTE filter: 694Mhz, 790MHz or OFF.

Details

Profiler Revolution HP Processor Central (70dB / 131dBμV) with 6 inputs: x4 VHF/UHF + FM + SAT

What are the main characteristics of the Johansson 6702HP Central Processing Unit?

Input signal level reading: no field meter needed
Can process more than 50 channels (terrestrial and satellite)
Can convert a wide selection of terrestrial channels
The most selective filters on the market (50 dB to adjacent channel)
Real-time CAG on all individual multiples
Flexible matrix: Total flexibility in assigning filters from any input
Made in Europe, for applications worldwide
The Profiler Revolution SAT is really easy to install
Meets RED standard

What technical specifications does the Johansson 6702HP Processor Central have?

Inputs	-	1 SAT + 1 FM + 4 VHF/UHF
Outputs	-	1 main (SAT-FM-VHF-UHF) + 1 test port (-30dB)
Frequency range	MHz MHz MHz MHz	SAT: 950 - 2400 FM: 88 - 108 VHF:174 - 240 UHF: 470 - 862
LTE protection	MHz	Automatic selection: 694, 790 or OFF
Input level	dBµV dBµV dBµV dBµV	SAT: 40 - 95 FM: 37 - 77 VHF: 40* - 109 UHF: 40* - 109
SAT output power	dBµV	119 (-35dBc/IM3 2 carriers)
FM output power	dBµV	113 (60dB/IM3)
VHF/UHF output power	dBµV	120 (60dB/IM3) 131 (35dB/IM3)
VHF/UHF output power with 1 MUX	dBµV	113
VHF/UHF output power with 6 MUX	dBµV	110
Conversion	-	Yes (from any VHF-UHF channel to any VHF-UHF channel)
Gain	dB dB dB dB	SAT: 40 FM: 35 VHF: > 70 UHF: > 70
Gain adjustment	dB dB dB	SAT: 20 FM: 20 VHF/UHF: Channel AGC
Noise figure	dB	SAT: 8
General attenuator	dB	20
Slope adjustment	dB dB	SAT: 12 VHF/UHF: 9
Selectivity	dB dB/1MHz	SAT: 40 ( @ 862 MHz) VHF/UHF: 35
Return Loss	dB	10
Output MER	dB dB	VHF: 35 UHF: 35
ESD protection	-	All inputs
DC @ VHF/UHF input DC Load current @ VHF/UHF input	V mA	12 or 24 100 (total for the 4 VHF/UHF inputs)
DC @ SAT input DC Load current @ SAT input	- mA	13V/18V/Bypass & 0/22kHz selectable by SW 300
SD port	-	Yes (for copy configuration)
Operating temperature	°C	-5 to +50
Power Supply Power Consumption	V W	100 - 240 25
Dimensions	mm	217 x 165 x 59
Weight	kg	0,85

* For 64 QAM with 3/4 code speed

More Information

More Information
EAN	8401367020021
Hight	0.270
Length	0.080
Width	0.230
DTT System	Amplificador TDT y SAT
MANUFACTURER SERIES DTT	Profiler
Color	White
Type	Programmable station
Entorno	Interior
# Inputs	6
Outputs	2
Gain	70
Max. output level Ganancia (dB/uV)	131
LTE compatible	No
Current bypass	Satellite, Terrestrial
Product Brand	Johansson
