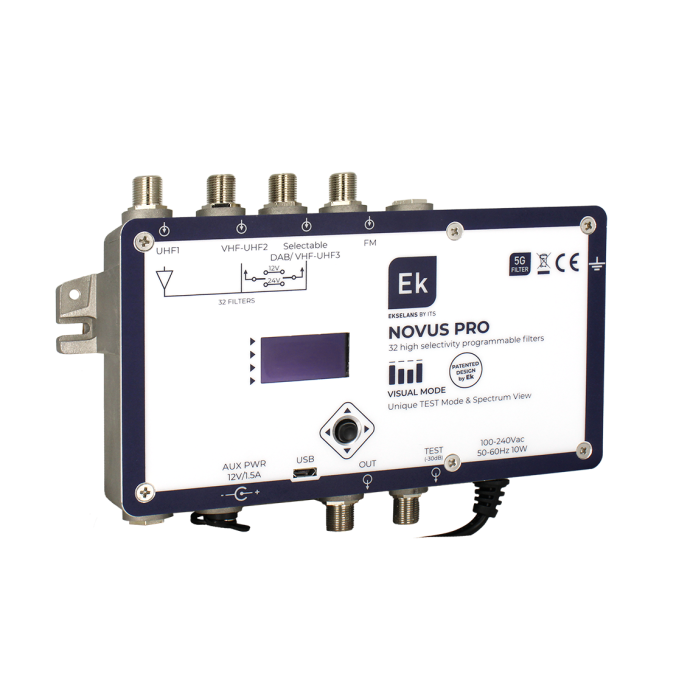

EK Novus Pro 4 Inputs Programmable Central Station
This programmable amplifier has 32 tunable UHF/VHF filters with variable bandwidth between 1 and 4 channels. It has individual output level adjustment. It has automatic gain control in real time. It has 4 inputs (1 x FM, 1 x VHF + DAB + selectable UHF, 1 x VHF/UHF selectable, 1 UHF) and 2 outputs (TER / TEST -30dB) with a maximum output level of 124dBuV.
This type of switchboard is ideal for common telecommunication infrastructure installations with more than 30 outlets.
This central belongs to the NOVUS PRO range, developed with the most modern digital filtering technology. Its .32 ultra digital filters allow to select, filter and amplify each digital multiplex, ensuring an exceptional quality in the output signal.
It includes advanced functions such as VISUAL MODE (patented by EK), which facilitates the adjustment of filters quickly and easily, as well as a graphical representation of the spectrum. It also has an AUX PWR input, to connect a redundant power supply, so that the device is not left without power in case of failure in the main power supply. It also includes a TEST MODE, to identify defects in the installation.
The control panel has a LED display, as well as a joystick button to make the configuration more intuitive and simple through menus. The internal temperature is constantly monitored and recorded, allowing its correct ventilation to make a proper diagnosis in case of failure.
