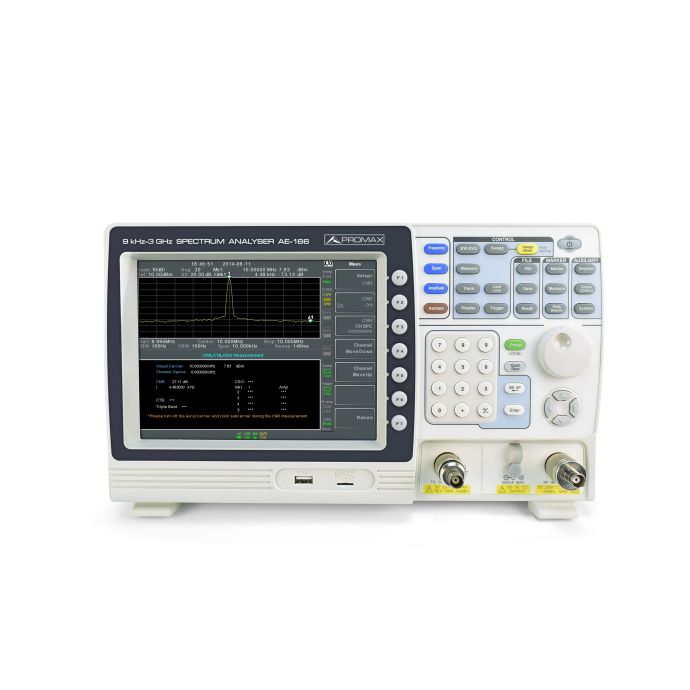

The AE-166 analyzer is a light and compact 3 GHz spectrum analyzer with high added value.
Its range of frequencies ranges from 9 kHz to 3 GHz and includes various functions such as radio frequency and power measurements, P1dB point measurement of active components, Harmonics measurement, etc.
They also support high scan speeds (up to 307 μS).
The AE-166 spectrum analyzer is a lightweight and compact analyzer.
What technical characteristics does the AE-166 have?
FREQUENCYRANGE
De 9 kHz a 3 GHz
RESOLUTION
1 Hz
LEVELDISPLAY Scales Units Display
4 trazas Logarítmica, linear dBm, dBmV, dBµV, V, W Traza, topográfico, espectrograma (ventanas individuales o divididas)
SCANNING
Contínuo o simple. De 50 µs a 1000 s
RFPREAMPLIFIER
De 1 MHz a 3 GHz. Ganancia 18 dB
Tracking Generator(AE-167)
De 100 kHz a 3 GHz
INPUTSANDOUTPUTS
- Entrada de RF - VSWR - USB 2.0 host - USB 2.0 device - Ranura microSD - Salida de referencia - Entrada de referencia - Salida de alarma - Entrada de <em>trigger</em> - Entrada de <em>gated sweep</em> - Interfaz LAN TCP/IP - Salida FI - Salida para auriculares - Salida de vídeo - Interfaz RS-232C - Entrada de alimentación AC
PRESENTATION
Pantalla LCD extra grande de 8”
OPTIONAL ACCESSORIES
- Bolsa de transporte - Kit de montaje en rack 6U
BATTERY OPERATION
Opcional
What other advantages does the AE-166 analyzer offer?
The AE-166 spectrum analyzer with integrated preamplifier and a sensitivity as high as -149 dBm / Hz are able to measure very fine signals. To obtain accurate results, the low-power uncertainty measure of the AE-166 is less than 1.5 dB.
They are suitable instruments in very diverse areas of application. It is the basic equipment for any R & D laboratory, research or professional training center, universities, maintenance engineering and production chain testing. This lightweight and compact spectrum analyzer is also valid for automated test systems and vehicle installed systems.
3 GHz AE-167 Spectrum Analyzer + Tracking Generator€9,320.03 Tax included
