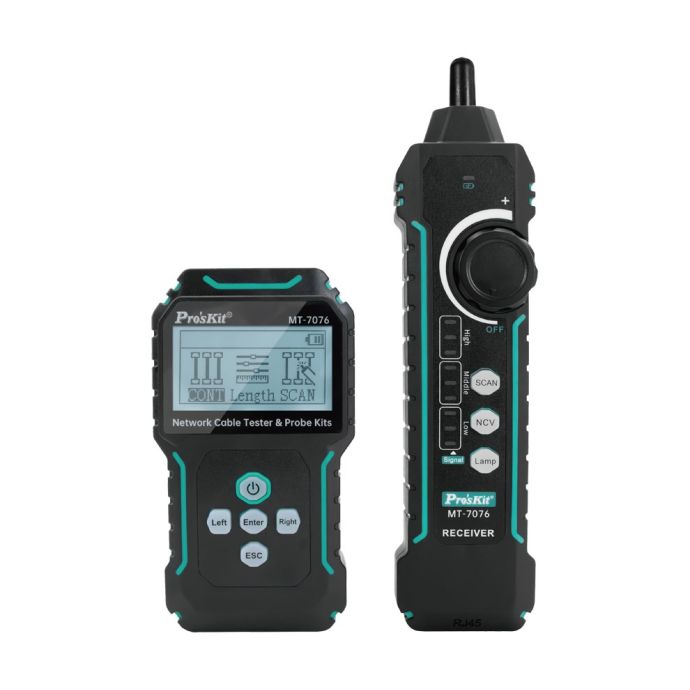

Proskit Network Cable Length, Tracker and Connection Tester

SKU
PSKMT7076
Brands: Proskit
€130.64 Tax included
Availability: On request
1 to 7 days

Proskit Connection Tester, Network Cable Tester and Cable Length Tracker

The MT-7076 tester allows the search of lines against interference using digital signal reception and decoding technology. The degree against interference is higher and more accurate, eliminating positive faults.

It has functionsof line search with interference, analog line, network cable length test, network cable connection test, POE test, switch details and port pulses test and network cable connectors test.

With POE cable tracking. It has flash port, with this function will be much easier to locate the port, as the transmitter will send flashing signals, helping us to determine the correct port.

It is able to detect non-contact voltage (NCV), this function is used to determine if the cable or equipment has AC voltage.

Its LCD display, pallows you to see the menus and measurements clearly. It has a lithium polymer battery, which is charged via the USB-C port (charger not included).

Accessories Include:

  • Receiver
  • Transmitter
  • USB-C connection
  • Headset
  • RJ45/RJ11 connections with alligator clips
  • User's manual
  • Carrying Bag



-
+

Proskit Network Cable Length, Connection and Connection Tester Technical Specifications

Technical characteristics

MT7076 Transmitter Specifications



Display

LCD 53x29mm (158x64 dots)



Language

Chinese / English



Connectors

RJ45 x 3; RJ11 x 1



Mapping

Type of cable: CAT.5; CAT.5e; CAT.6; CAT.7



Display: R&M; 1-8/G



Maximum range: 300m



Transmission

Single transmission: analog/digital mode



Max. signal voltage: 5.0 V ± 1.0 Vp-p



Frequency: 455 kHz



Cable Type: CAT5/ CAT5e/CAT6 STP/UTP; Telephone Cable



Scanning range: 1 km (analog mode) / 600 m (digital mode)



Cable length

2.5 ~ 200 m CAT.5 / e, CAT.6



accuracy: ≤20m,±1.6m; 20m~100m, ±2.4m; 100m~200m, ±3.2m



Unit: m/yd/ft



Pulses

Frequency: 1 time/3 seconds



Link test: 10M/100M/1000M; FDX/HDX; Auto- Nego/No-Auto Nego.



PoE Test

Type: IEEE802.3af/at; Nonstandard



Midspan/Endspan/8 pins



Voltage values



Test

RJ45 8-pin connectors; ≥10cm



Backlight

15 s/30 s/60 s/on/off



Automatic shutdown

15 min/30 min/60 min/60 min/off



Battery

3.7 V and 1400 mAh Li-ion



Size

125x70x32 mm



MT7076 Receiver Specifications



Receiver signal

Analog mode/digital mode



Sensitivity

By potentiometer sensitivity adjustment



Flashlight

1 LED

NCV

70VAC - 1000VAC 50/60Hz

Low battery

Battery indicator flashes

Headphone jack

3,2mm

Battery

3.7V 1400mA Li-ion

Size

198x50x28mm



More Information
EAN 8445577008257
Hight 0.040
Length 0.230
Width 0.160
Color Gray
Product Brand Proskit
