Proskit Network Tester, POE and Cable Locator by Tone

SKU
PSKMT7029N
Brands: Proskit
€90.87 Tax included
Availability: On request
1 to 7 days

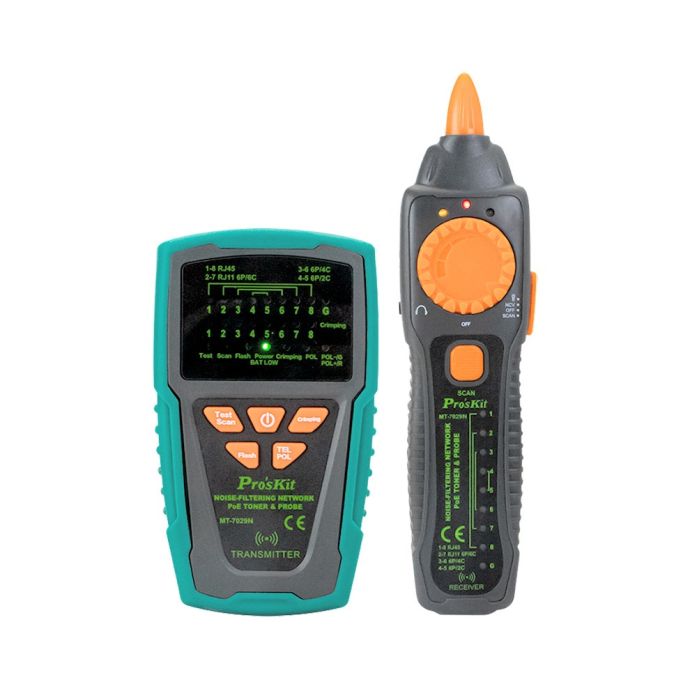

Network Tester, POE and Tone Cable Locator from Proskit

This deviceis used to locate and verify in a very simple way the state of a cable, locate if we have problems in a crossed cable, a short cable or if there is continuity in a RJ45 network cable of category 5, 5e, 6 and 7 (both in UTP and STP). It also tests telephone cables RJ11, RJ12, category 3 and other types of rigid and flexible conductors thanks to the alligator clips. It consists of a transmitter and a receiver unit.

Ideal for ordinary network or POE network installations, telecommunications maintenance, data communications, UTP/STP cable sourcing and positioning, monitoring, CATV and other indoor and outdoor cabling installation projects.

Conductor testing and location is done by tone. It works with special circuit design to eliminate noise and achieve efficient cable tracing. Its use is very simple, allowing to trace cables without electromagnetic interference.

With POE cable tracing. It is also ideal for BNC cable tracing. With this function it will be much easier to locate the port, since the transmitter will send flashing signals, helping us to determine the correct port.

It has a tracking distance of 600 meters. It is capable of non-contact voltage detection (NCV), this function is used to determine if the cable or equipment has AC voltage. On the other hand, it also determines the polarity of a telephone line. It has led light on the transmitter.

The tester works with a 9V battery (not included). The tester incorporates an on/off and low battery indicator on its front panel. As an accessory it includes alligator clips, carrying case and instruction manual.

-
+

Technical Specifications of Proskit's Network Tester, POE and Tone Cable Locator

Technical characteristics:

Specifications TRANSMITTER
Cable tracing for RJ45 Lan cable Cat5, 5e, 6, 7 (UTP/STP), RJ11/12 telephone cable
  Signal voltage 8Vp-p
  Signal frequency 455 KHz
  Tracking distance 600m
Cable mapping RJ45 test/scan socket for locating individual RJ45 cable pairs
RJ11 POL/Scan connector for locating individual RJ11 cable pairs
  8+1 LED indicators
  Maximum test distance: 300m
Crimp test RJ45, RJ11/RJ12 Modular Connector Crimp Test, 8 LED Indicators
Flash port 1 LED indicator
POL +/- telephone line 1 bicolor LED: “-” polarization (Green)/ “+” polarization (Red)
Auto power off 1 hour
Battery indication About 7.0V; Power LED flashing.
Voltage protection 60VDC
Battery 9V (NEDA 1604/6F22) x1pcs.
working current Tracing/Wire Map/Crimping <35mA; Pulse port >10mA
Dimensions 138x80x35mm (Length x Width x Depth)
Weight 142g
Specifications RECEIVER
Response frequency 455KHz
Plot indication 1 LED indicator and speaker, adjustable sensitivity
Compatible connectors Modular RJ45
Cable map 8+1 LED indicators



NCV 1 LED indicated and speaker (90VAC – 1000VAC)
Handset Jack 3.5mm
Lightning 1 LED
Battery indication About 7.0V; Power LED flashing.
Battery 9V (NEDA 1604/6F22) x1pcs.
working current <200mA; illumination <50 mA
Dimensions 203x50x32mm (Length x Width x Depth)
Weight 95gr.
Accessories 2 RJ45 patch cables, 2 RJ11 patch cables, 1 RJ11 to alligator clip patch cable, 1 earpiece, storage bag, user manual
