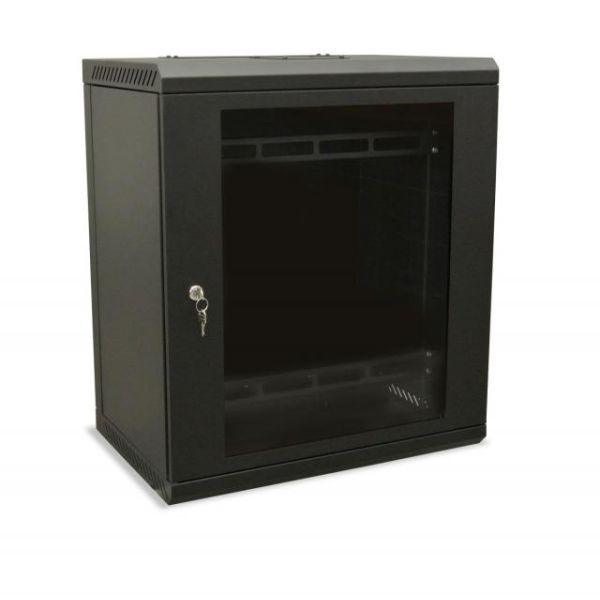

The Televes 533106 rack is a 19 "rack for the housing of passive equipment in ICT-2 installations.
This rack allows optimizing the space, giving a compact and professional appearance. In addition there are two pull-out panels that can be removed to obtain an extra 2U of space.
The cabinet 533106 is made of steel with a powder coating of zinc plated sheet made with polyester resins and lead-free pigments that endows them with high strength and durability.
The Televes 533106 rack cabinet is a rack cabinet for wall or floor that allows the organization of structured wiring.
What technical characteristics does the cabinet 533106 have?
It measures 600 x 380 x 400mm.
Removable front door made of tempered glass with lock and flexible fit, and side doors with hinge (facilitates installation).
Allows wall and floor mounting.
Two 1U cable glands are included.
Upper and lower caps adjustable as the cables pass through.
Natural ventilation beams on the sides.
Installation indoors (IP20).
Manufactured in Europe.
What is the cabinet 533106 used for?
A rack cabinet, such as the Televes 533106 cabinet, is useful in a data processing center where space is tight and a large number of devices need to be housed. These devices are usually:
Servers: whose housing has been designed to fit the rack. Typical server heights are 1, 2, 3 or 4 rack units.
Communications switches and routers.
Patch panels, which centralize all the wiring of the plant.
Firewall.
The equipment simply slides on a horizontal rail and is fastened with screws.
There are also trays that support non-standard equipment, such as a desktop router.
