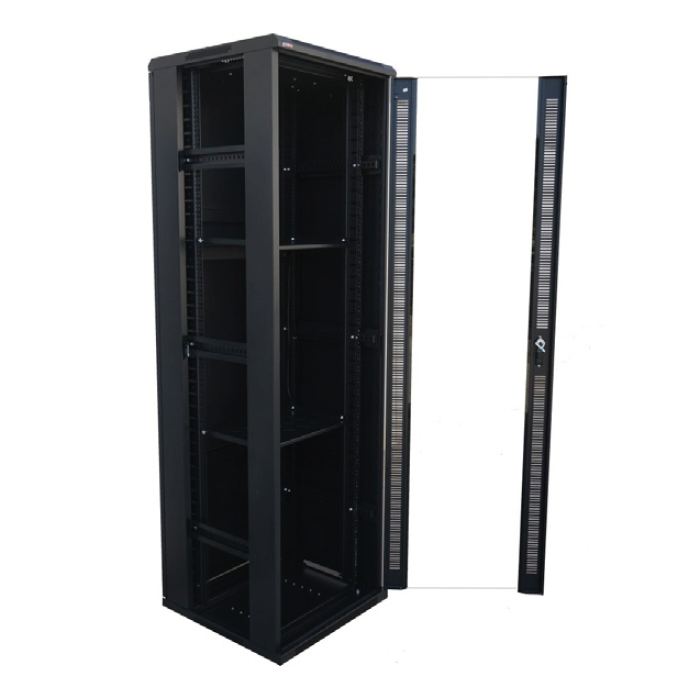

Floor Rack Cabinet 19" 18U Depth 600 with Accessories GTLAN

SKU
GTL31GTS1866
Brands: GTlan
€509.65 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

19" 18U 600x600 Rack Cabinet with GTLAN Accessories 31GTS1866

19" rack cabinet for floor with dimensions of 910x600x600 mm. Robust design for all types of installation: offices, shops, data centers and industrial environment. Its hinge system allows changing the direction of door opening without tools.

This cabinet has space for 18U and supports a maximum load of 500kg. Made of 2mm high-capacity cold-rolled SPPC steel and 5mm tempered glass front door with rectangular lock and side ventilation. Its rear door is made of metal and includes a lock.

You can add cable from both the top and bottom. With an IP20 protection index.

The following accessories are included with the purchase of this rack:

*1 x Fixed tray.

*1 x Power strip 19" 6 Schuko + Switch.

*2 x ceiling fans.

*1 set of screws/nuts.

*1 kit 4 wheels.

*1 kit 4 leveling feet.

*Detachable sides.

*1 x Tailgate.

-
+

Technical Characteristics of the Rack Cabinet 19" 18U 600x600 with Accessories GTLAN 31GTS1866

Floor rack cabinet 19" 18U and 600mm deep, with accessories included.

Click here to discover the entire range of GTLAN rack cabinets.

What technical specifications does the GTLAN 31GTS1866 rack have?





31GTS1866

31GTS2266

31GTS2296*

Capacity:

18U

22U

22U

Measures:

600x600x910mm

600x600x1090mm

900x600x1090mm

Weight:

37 Kg

48 Kg

59 Kg

Load:

500 Kg

500 Kg

500 Kg

Material:

High quality cold rolled SPCC steel

Support profiles:

4 uds.movable in depth (2mm thick)

Front door:

Tempered glass (with lock and side ventilation)

Back door:



Metal (with lock)



Sides:



Metal



Wiring entry:



Upper and lower



cable glands:

No

No

No

ColoUr:

Fine-grain powder coating, black RAL - 9004

Accessories:

1 x Fixed Shelf, 1 x 19” 6 schuko Power Strip + Switch, 2 Ceiling Fans, 1 Set of Screws, 4 Wheels, 4 Leveling Feet, Removable Sides, Rear Door

Tightness:

IP20

IP20

IP20

Regulations:

ANSI / EIA RS-310-DIEC397-2, DIN41491; PARTI, DIN41494; PART7, GB/T3047.2-92

Measurements with box:

620x620x930mm

620x620x1110mm

920x620x1110mm

Cubing with pallet:

0,404 m3

0,476 m3

0,703 m3

More Information
EAN 8435481002557
Hight 1.500
Length 0.900
Width 0.800
Color Black
Units 18
Width 19"
Depth 600 mm
Rack type Rack cabinete
Rack accessories Other accessories, Plates, Strips, Ventilation units
Frame Floor
Product Brand GTlan
