Radiator thermostat Z-Wave Plus by Fibaro

Technical Specifications of the Z-Wave Pus Radiator Thermostat

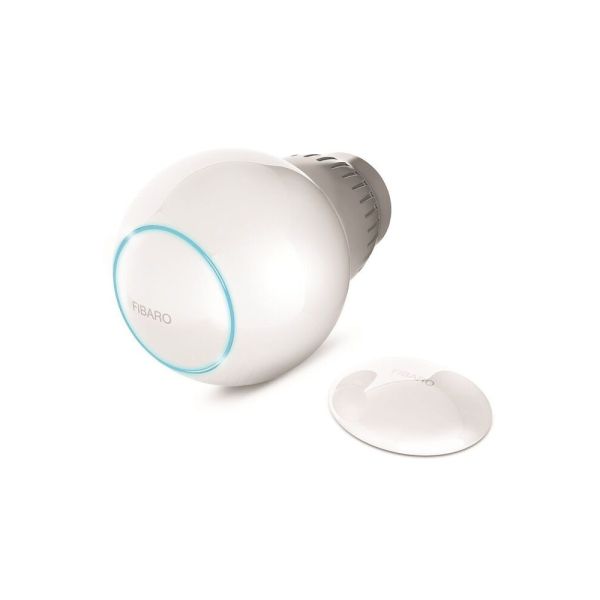

The Fibaro radiator thermostat is a Z-Wave Plus intelligent thermostatic head, which controls the temperature of the room by regulating the water circulating in the radiator.

What technical characteristics does Fibaro's thermostat have?

• It can be installed on three types of valves: M30 x 1.5, Danfoss the RTD-N and Danfoss RA-N.
• Compatible with Z-Wave and Z-Wave +
• Supports Z-Wave security networks: S0 with AES-128 encryption and S2 with PRNG.
• Rechargeable battery with micro-USB standard.
• Easy installation, no tools are necessary.
• You can use it as an external temperature sensor.
• Automatic calibration
• Antifreeze function.
• Free rotation to set the desired temperature.

Specs
Thermostatic head:

Power Source: SELV 3.7V Li-Poly Battery Pack (non-replaceable)
Compatible charger (not included): micro-USB 5V DC, min. 0.5A
Radio protocol: Z-Wave (enabled for S2)
Radio frequency band: 868 MHz band
Operating temperature: 0-40°C
Storage temperature: -10-25°C
Maximum water temperature: 90°C
Temperature measurement accuracy: 0.5°C (within 0-40°C)
Compatible valves: M30 x 1.5,
Danfoss RTD-N,

Danfoss RA-N

Rated impulse voltage: 330V (when connected to USB power supply)
Dimensions (diameter x length): 56 x 74 mm
56 x 87mm (with adapter)

Compliance with EU directives: RED 2014/53/EU
RoHS 2011/65/EU

Temperature sensor:

Power supply: 3.0V CR2032 battery (included)
Radio frequency band: 2.4 GHz
Radio signal strength: up to -4 dBm (EIRP)
Operating temperature: 0-40°C
Dimensions (diameter x height): 38 x 12 mm
Compliance with EU directives: RED 2014/53/EU
RoHS 2011/65/EU
