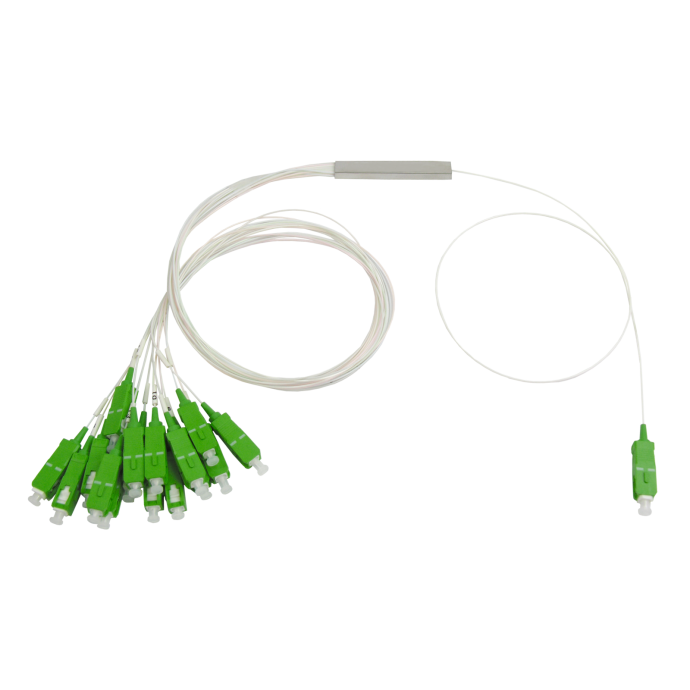

Splitter F.O.1260...1650nm “SC/APC” 16D 14dB
Availability:
On request
1 to 7 days
Splitter óptico 16 outputs and 14 dB de Televes. Ref. TEL234550.
Range of optical distribution networks for FTTx, PON, etc., ideal for mounting in boxes and racks (tray type accessories). Its main advantages are:
- High reliability.
- Low insertion loss.
- High uniformity between outputs.
- Made of single mode fiber (SM) of 900μm.
- Meet ITU-T standards-G657A1.
Applications for telecommunications networks (FTTx, PON systems LAN, WAN).
Main features:
- High reliability.
- Low insertion losses.
- Very Low PDL (polarization sensitivity).
- Excellent uniformity.
- Design and compact dimensions.
- SC / APC Connectorization.
- Made with 900 microns SM fiber, which gives ease of handling and resistance.
- According to ITU-T G657A1, which provides its fibers a very small turning radius.
Applications:
- Telecommunications networks (FTTH PON systems LAN, WAN).
| Referencia |
233750 |
233950 |
234450 |
234550 |
234650 |
| Nº de salidas |
No. of outputs |
|
2 |
4 |
8 |
16 |
32 |
| Conectores ópticos de entrada y salida |
Input & output connectors |
Type |
SC/APC |
| Fibra |
Fiber |
Type |
Monomodo / Single-mode G657A1 |
| Diámetro de la fibra |
Fiber diameter |
μ |
900 |
| Longitudes de onda de trabajo |
Working wavelength |
nm |
1260 ... 1650 |
| Pérdidas de inserción |
Insertion loss (IL) |
dB |
≤ 4.1 |
≤ 7.5 |
≤ 10.5 |
≤ 13.5 |
≤ 17.5 |
| Pérdidas de retorno |
Return loss (RL) |
dB |
≥ 55 |
| Uniformidad |
Uniformity |
dB |
≤ 0.6 |
≤ 0.8 |
≤ 0.8 |
≤ 1.2 |
≤ 2 |
| Pérdidas de polarización |
Polarization dependent loss (PDL) |
dB |
|
|
0.3 |
|
|
More Information
| EAN |
8424450184905 |
| Hight |
0.295 |
| Length |
0.041 |
| Width |
0.263 |
| RED - System |
Fibra Óptica |
| RED - SERIE |
FO Distribution |
| Product Brand |
Televes |
| FO Distribution |
FO Splitter |
| Entorno |
Interior |
| File |
Label |
Size |
Download |
|
Ficha técnica Repartidores FO |
1.1 MB |
Download
|
