Satellite Line Amplifier 20dB (47-2400 MHz) with DC Tecatel

SKU
TECAMPLINRFFI
Brands: Tecatel
€4.28 Tax included
Availability: In stock
24/48 Hours

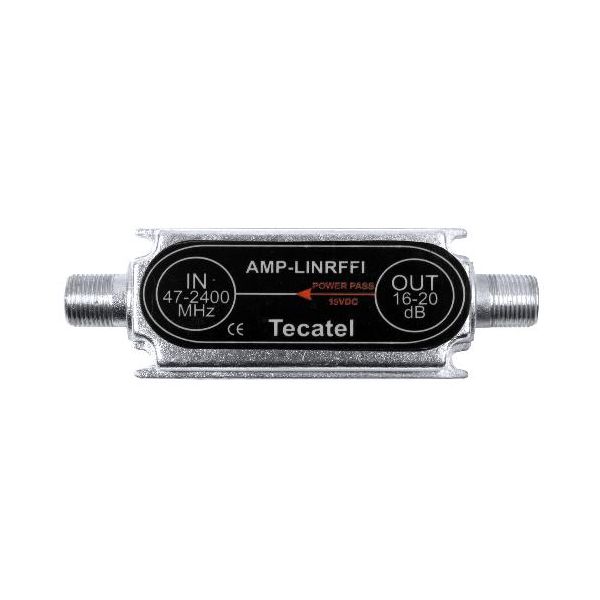

Satellite Line Amplifier 20dB (47-2400 MHz) Tecatel AMP-LINRFFI

This handy little amplifier is powered directly from the satellite receiver itself and is capable of increasing the signal strength by +20dB. Amplifies the satellite signal without affecting the terrestrial.

It is ideal when the reception satellite signal is very weak, especially when a large number of meters of cable has been used from the antenna to the satellite receiver. 81x26x11mm amplifier, with "F" type connectors at both ends, for indoor mounting.



-
+

Satellite IF Line Amplifier 16-20dB (47-2400 MHz)

What technical specifications does the Tecatel AMP-LINRFFI Satellite Amplifier have?

  • Input: 47 - 2400 MHz
  • Gain: 16 - 20 dB
  • Output level: 110 dBμV
  • Impedance: 75 Ω
  • Noise figure: 5 dB
  • Return loss: 8 dB
  • Pass current: 500 mA
  • Shielding:> 55 dB
  • Power supply: 11 - 20 Vdc
  • Consumption: 40 mA
  • Dimensions: 81 x 26 x 11 mm
  • Connectors: F
  • Weight: 0.150 kg
More Information
EAN 8430549016019
Hight 0.090
Length 0.030
Width 0.030
DTT System Amplificador TDT y SAT
MANUFACTURER SERIES DTT F-connector
Color Black
Type Line amplifier
Entorno Interior
Input signal FI
# Inputs 1
Outputs 1
Gain 20
Max. output level Ganancia (dB/uV) 110
LTE compatible No
Current bypass Satellite
Product Brand Tecatel
