RJ45 Male Grip Cat6A Connector Televes 209924

Name: RJ45 Male Grip Cat6A Connector Televes 209924
Brand: Televes
SKU: TEL209924
Price: 6.26 EUR
Availability: InStock

SKU

TEL209924

Brands: Televes

€6.26 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

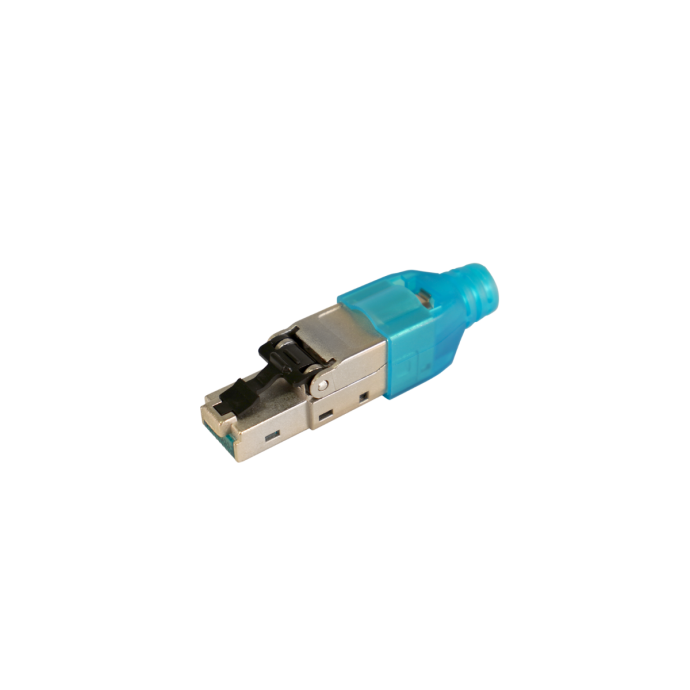

RJ45 Male Grip Cat6A Connector Televes 209924

With this connector you do not need any specific tool since the crimping is done by pressure when closing the connector. This consists of two moving parts that fit over the cable, ensuring that it does not move and fixing the cable pairs.

It can be reused, without being damaged or losing functionality without adding losses to the cable.

The connector is compatible with Category 6A or lower. The cable entry is made from the front, without adding elbows. The connector contacts are 50 micron gold plated.

Details

Technical Specifications of the RJ45 Male Grip Cat6A Connector Televes 209924

Data connector model		Male
Data connector type		RJ45
Categorie		Cat 6A
Connector shielding		Yes
Contact resistance	mΩ	100
Insulation resistance	MΩ	500
Conductor type AWG		23 ... 26
Special tool required		No
Durability (connection cycles)		1500
Reusable		Yes
Cable output		180º
Colour		Matte Inox

Compatibility of RJ45 connectors with Televes data cables:

Reference		219602	219701	219502	2199	212201	2123	212302	212305	212310	212101	219302	219102	219312	219322
Female Connectors	209905	✔	✔	✘	✔	✔	✔	✔	✔	✔	✘	✘	✘	✘	✘
	209901	✔	✔	✘	✔	✔	✔	✔	✔	✔	✘	✘	✘	✘	✘
	209921	✔	✔	✘	✔	✔	✔	✔	✔	✔	✘	✘	✘	✔	✘
	209903	✔*	✔*	✔	✔*	✔*	✔*	✔*	✔*	✔*	✔	✘	✘	✘	✘
	209923	✔*	✔*	✔	✔*	✔*	✔*	✔*	✔*	✔*	✔	✔	✘	✔*	✔
Male Connectors	209902	✔	✔	✘	✔	✔	✔	✔	✔	✔	✘	✘	✘	✘	✘
	209904	✔*	✔*	✔	✔*	✔*	✔*	✔*	✔*	✔*	✔	✘	✘	✘	✘
	209924	✔*	✔*	✔*	✔*	✔*	✔*	✔*	✔*	✔*	✔*	✔	✘	✔*	✔

✔ Compatible
✔* Compatible, but there are better choices
✘ Incompatible

More Information

More Information
EAN	8424450251126
Hight	0.030
Length	0.010
Width	0.050
System DTT	CAT6A
Serie	Male Connect.
Color	Silver
Type	Connector
Connection type	RJ45 Male
Form factor	Straight
Product Brand	Televes
