Router 4 Ports 2.5Gigabit, 2 PoE+ ESG510

SKU
ENGESG510
Brands: EnGenius
€397.53 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

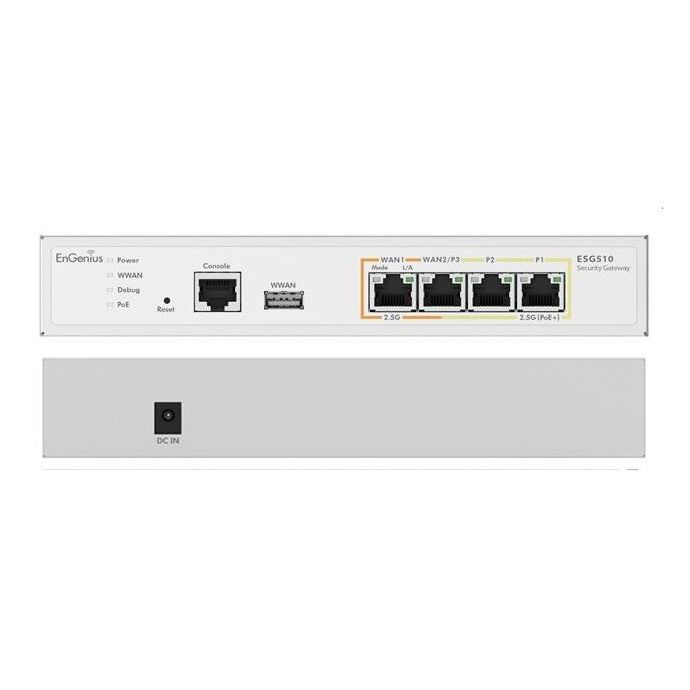

Engenius ESG510 4-Port Gigabit Router/Gateway, 2 PoE+

The cloud-managed router features 4 high-speed LAN and WAN ports, running at 2.5Gbps, more than twice the speed of most current gateways. It has a firewall that blocks attacks on the router.

WAN ports are capable of efficient load balancing, increasing overall WAN bandwidth.

PoE+ port to power another access point, phones or IP cameras.

This gateway is ideal for businesses, providing a cloud solution simplifying network management. It is capable of integrating into any existing network. Cloud management via the EnGenius Cloud web interface and with the Cloud To-Go app.

-
+

Technical Specifications of the Router/Gateway of 4 Gigabit Ports, 2 PoE+ ESG510

Technical specifications



ESG510
CPU - Processor
Quad Core
Operating Frequency
1.6GHz
Memory
4GB
Storage
8GB
Ethernet Network Port
4 x 10/100/1000/2500 BASE-T, RJ-45
ethernet ports
Console Port
1 x 10/100/1000, RJ-45 Ethernet port
PoE+ ports
1 (802.3af/at) LAN (P1)
Desktop / Wall Mount USB Interface
1 x USB 3.0
Security Chipset
dwt
Features & Capacity Firewall (SPI Throughput) 4G
VPN Throughput
970Mbps
Max. Concurrent TCP Sessions
1,000,000
Max. Concurrent VPN Tunnels
200
Max. VLAN 96 FIREWALL
Specifications Firewall Stateful Packet Inspection Policy Rules
Forwarding of ports
1:1 NAT
Allow Incoming Services
VPN
Site-to-Site VPN
Mesh VPN/Hub-and-Spoke
encryption
DES, 3DES, AES (256-bit)
Authentication
MD5, SHA1, SHA2 (512-bit)
Key Management
IKEv1 (x-auth, mode-config)
IKEv2 (EAP, configuration payload)
VPN Specifications Site-to-Site VPN Client VPN
Policy-based VPN
IPsec NAT traversal (NAT-T) Dead Peer Detection (DPD) Auto-VPN Connection
Auto NAT traversal
NET
Mode of Operation Routed/Passthrough Multiple WANS
Dual (WAN 1 & WAN/P3)
Bandwidth Limits Per Interface/Per Client Traffic Balancing
WAN load balancing with WRR Networking Features
Static Route Multiple WANs USB Cellular
PPPoE User Authentication
VLAN Tagging Captive Portal Custom Splash Page Dynamic Routing Bandwidth Limit Traffic Load Balancing
DHCP client/server/relay
Dynamic DNS support
ENVIRONMENTAL SPECIFICATIONS
Feeding
54V/1.2A
operating temperature
0°C to 40°C
Humidity (non-condensing) 5 to 95% non-condensing PACKAGING
Content of the package Power adapter Power cable RJ45 console cable
Wall Mount Kit
Quick Installation Guide Dimensions and Weights Weight: 2.14 lbs. (.97kg)
Width: 8.27” (210mm)
Height: 7.07” (179.5mm)
Bottom: 1.38” (35mm)
COMPLIANCE & WARRANTY
regulations
FCC Part 15 (Class B) IC
CE EMC (Class B) RCM
BSMI
Certifications
CE, FCC, IC
Warranty
2 years
More Information
EAN 4713361936005
Hight 0.300
Length 0.080
Width 0.300
RED - System EnGenius Cloud
RED - SERIE Gibabit Ethernet
Color Black
Network Equipment Router
Ports 4
Data Speed Gigabit (10/100/1000Mbps)
PoE Yes
