FTTH 1310/1550nm Optical Receiver with 4 RF Outputs

Name: FTTH 1310/1550nm Optical Receiver with 4 RF Outputs
Brand: Televes
SKU: TEL237320
Price: 183.13 EUR
Availability: InStock

SKU

TEL237320

Brands: Televes

€183.13 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

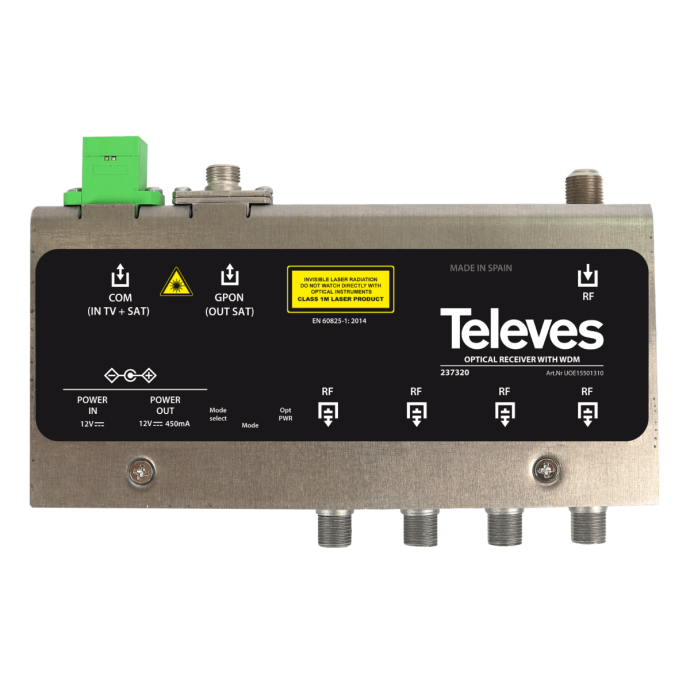

Televes 237320 RF 4 Output FTTH Optical Receiver

This FTTH receiver allows 2 satellite TV signals to be received along with all DTT on a single fiber and demultiplexed them (WDM).

At the 1310nm wavelength, it carries the satellite dCSS channels with an optical LNB from the SKY operator, while at 1550nm the complete DTT signal is transmitted along with a second FTA satellite signal from another parabolic.

Thanks to an external switch that it includes, the receiver allows selecting the SKY dCSS mode or SAT FTA (Free To Air) mode, which will be distributed along with the DTT through the 4 RF outputs.

In SKY dCSS mode, a complete satellite (4 polarities) is received and it is necessary to purchase the Televes 237201 optical converter, which is powered from the same receiver.

With FTA Satellite mode a static IF polarity and a limited number of SKY channels will be distributed.

This optical receiver was designed to be used with the Televes 237301 FTTH transmitter.

Details

Televes FTTH 1310-1550 nm Optical Receiver with 4 RF outputs

What are the main characteristics of the Televes 237320 FTTH Receiver?

DIN rail installation: this assembly provides safety and efficiency, as well as saving space, time and cost due its advantage by being able to integrate several electrical devices in an installation with a lower cabling density. It is also possible to mount it screwed on the wall
Distribution mode flexibility: a switch is included to choose between DTT+Satellite IF or DTT+dCSS/Legacy
High sensitivity in 1550 nm
High output voltage in the 4 RF outputs
Eco-Mode powering with dCSS SKY mode selected: if the STB is switched-off, it ceases to power up the dCSS optical converter, just delivering the DTT lineup with a very low power consumption
Compatible with Legacy and dCSS multiswitches
Equipped with a power supply output to feed an optical converter
Very pleasant and compact format
SC/APC and FC/PC optical connectors
F-type RF connectors
