Online Uninterruptible Power Supply NEWSAI

Name: Online Uninterruptible Power Supply NEWSAI
Brand: NEW-SAI
SKU: SAI5170
Price: 525.14 EUR
Availability: InStock

SKU

SAI5170

Brands: NEW-SAI

€525.14 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

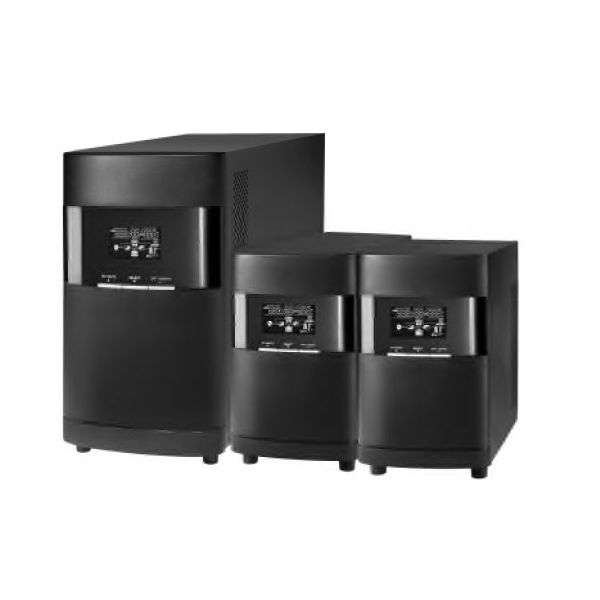

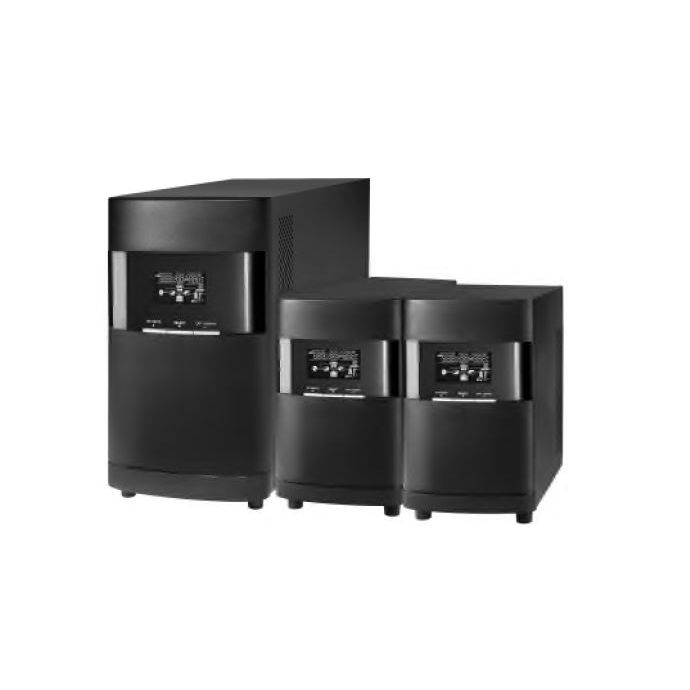

UPS 5170 PRO II 2000 VA RT 8xIEC 10 A New Sai

This Uninterruptible Power Supply is ideal for protecting computer devices in the event of a power outage, overload or power surge. Up to 6 PCs and a monitor can be connected. With a power of 2000VA and 1800W, it is a great solution to protect your devices efficiently and reliably.

It has an LCD screen that displays a large amount of information. You will be able to verify the status of input data such as consumption, voltage, battery voltage, UPS charge level.

This UPS can be mounted on a 19” rack thanks to the fixings it incorporates, although you can also convert it into a tower unit, thanks to its floor support.

This UPS shortens the charging time by up to 50% and is capable of charging its batteries even with the equipment stopped. Its ECO energy saving system, its microprocessor control, its voltage stabilization make it a very reliable and stable UPS. Includes USB communication and RJ-11 port for phone protection.

Details

Technical Specifications of the UPS 5170 PRO II 2000 VA RT 8xIEC 10 A

Specs
MODEL 5170 PRO 1,1K (L) CODe 17711		1K5 17715	2K (L) 17720	3K (L) 16730	5K (L) 17750
POWER	1100VA/990W	1500VA/1350W	2000VA/1800W	3000VA/2700W	5000VA/4500W
IN
Voltage Voltage Range Frequency Range	110/120 VAC o 220/230/240 VAC 81-152 VAC / 162-290 VAC 60/50 Hz (auto detection)
SALIDA
AC Voltage Reg. (Battery Mode) Frequency Range (Battery Mode) Peak Current Ratio Harmonic distortion Transfer Time Wave Type (Battery Mode)	± 5% before battery alarm 60 Hz or 50 Hz ±1 Hz 3:01 2% max @ 100% linear loads; 5% max @ 100% Non-linear loads Typical 2-6 ms, maximum 10 ms. Pure sinusoidal
EFFICIENCY
Mode ECO Mode Buck & Boost Mode Batery	97%
	95%
	Greater than 88% up to 90%			Greater than 90% up to 92%
BATERIES
Battery Type and Number Charger Voltage Typical Recharge Time Charge Current (max.) Charge current (max.)	12 V/9 Ah x 2	12 V/7 Ah x 4	12 V/9 Ah x 4	12 V/9 Ah x 6	12 V/10 Ah x 6
	27.4 VDC ± 1%	54.8 VDC ± 1%		82.1 VDC ± 1%
	4 hours recovers to 90% of capacity 1.5 A (typical) 8A (typical)
INDICATORS
LCD Display	AC and Battery Mode, Load and Battery Level, Input and Output Voltage, Overload, Fault, and Battery short
PROTECTION
Full Protection	Protection against Overload, Discharge and battery overload
ALARMS
Low Battery Mode Battery Overload Battery replacement alarm Failed	Beep every 10 seconds Beep every second Beep every 0.5 seconds Beep every 2 seconds Continuous beep
PHYSICAL
Dimension, D X W X H (mm) Net Weight (kgs) Dim, D X W X H (mm) Models L Net Weight (kgs) Models L	397x145x220	455x145x220		421x190x318
	12,1	17,2	19,7	29	35
	397x145x220	455x145x220		421x190x318
	7,6	N/A	10,2	14,5	18
OPERATING ENVIRONMENT
Humidity Noise level	0-90 % RH @ 0- 40°C (non-condensed) Less than 45dB
CONTROL SOFTWARE
Optional USB / RS-232 ports Optional SNMP ports	Support Windows 2000/2003/XP/Vista/2008 Windows 7,8,9,10 Linux and Mac Web browser control and management through SNMP network card
