Dahua 4Mpx Varifocal 2.8-13.5mm IR 40m Turret IP Camera WizSense Series MicroSD

SKU
DAH-IPC-HDW2441T-ZS
Brands: Dahua
€146.53 Tax included
Dahua
Availability: On request
1 to 7 days

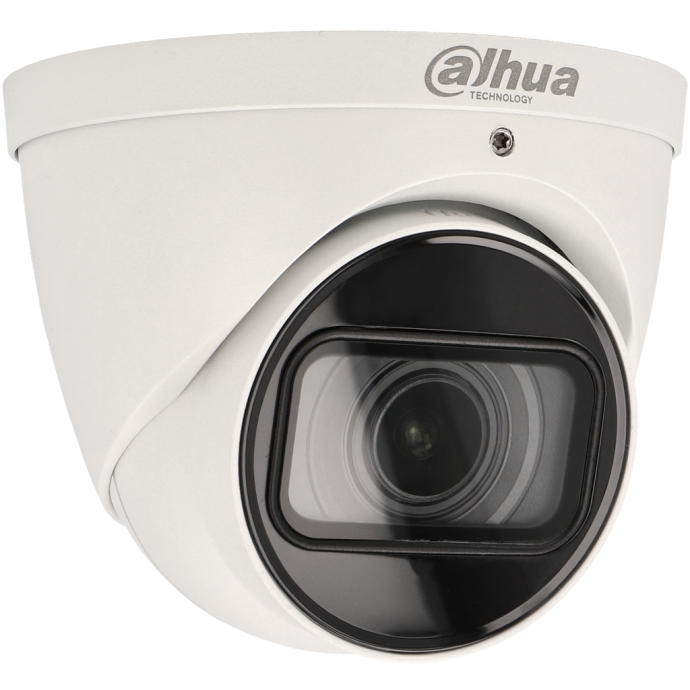

Dahua WizSense Series IP Camera 4Mpx and Motorized Varifocal Optics of 2.7-13.5m

Dahua camera is IP turret type, with motorized varifocal optics with focal length of 2.7-13.5mm and optics resolution of 4Mpx. This camera belongs to the Dahua WizSense series.

WizSense cameras feature a series of AI solutions with independent AI chip and deep learning algorithm. It focuses on humans and vehicles. Thus, these cameras have improvements in filtering out irrelevant objects such as small animals, are able to identify human/vehicle objects of interest through quick selection, and improve the bit rate providing clear images and saving more than 25% of the bit rate compared to H.265.

Its night vision has an infrared range of up to 40 meters, which can be configured in automatic or manual mode. The DORI distance (Detect, Observe, Recognize, Identify) is a general proximity of the distance that the camera will allow us in different actions and therefore will help us to choose the camera that comes closest to what we need. In this case, this camera is capable of: detecting moving objects at 64-210m, observing, distinguishing between people, animals or vehicles at 26-84m, recognizing people between men and women at 13-42m and identifying a face at 6-21m, even visualizing a license plate.

For image enhancement against light exposure, the camera has digital WDR technology. It has watermark and mirror mode. Allows storage by MicroSD card with capacity up to 256 GB. Allows PoE power supply (PoE 802.3af).

It is suitable for indoor and outdoor use and has an IP67 protection rating. It is made of metal and has a weight of 690gr.

If you combine these cameras with Dahua's WizSense recorders, you will reduce the failure rate of human detection in your security system to a maximum of 2%.



Technical Specifications of the Dahua WizSense Series 4Mpx Turret IP Camera with 2.7-13.5mm Varifocal Optics

Camera

Image Sensor

1/2.9" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.006 lux@F1.5(Color,30IRE)

0.0006 lux@F1.5(B/W,30IRE)

0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

40 m (131.23 ft) (IR LED)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

H: 104°–29°; V: 54°–16°; D: 125°–34°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

64.0 m (209.97 ft)

25.6 m

(83.99 ft)

12.8 m

(41.99 ft)

6.4 m

(20.99 ft)

T

210.0 m (688.97 ft)

84.0 m

(275.59 ft)

42.0 m

(137.80 ft)

21.0 m

(68.90 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+
Smart H.264+

Video Frame Rate

Main stream: 2688 × 1520@(1–20 fps )/2560 × 1440@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps

H.265: 12 kbps–6144 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Manual;Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; G.726; PCM

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

6 (Total bandwidth: 36 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB)

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Cyber Security

Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS;802.1x; Trusted boot; Trusted execution; Trusted upgrade

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive

2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 1.9 W (12 VDC); 2.8 W (PoE)
Max. (H.265+intelligence on +WDR +IR on): 6.1 W (12 VDC); 7.3 W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40°F to +140°F)

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

108.3 mm × Φ122 mm (4.26" × Φ4.80")

Net Weight

0.69 kg (1.52 lb)

Gross Weight

0.86 kg (1.90 lb)

More Information
Hight0.000
Length0.000
Width0.000
SECURITY - SYSTEMIP
SEGURIDAD - SERIETurret
TechnologyIP
ColorWhite
TipeTurret
EntornoExterior
Resolution4MP ~ 2K
OpticsVarifocal
Product BrandDahua
