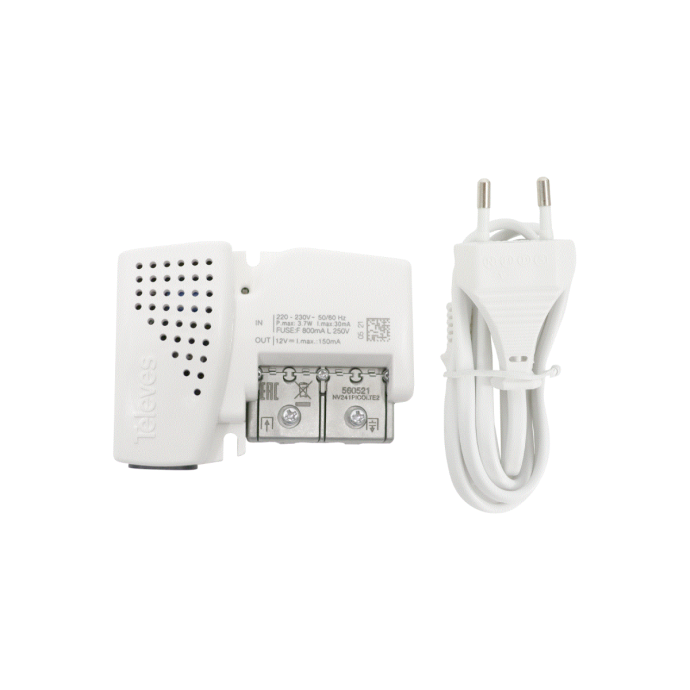

Self-adjusting Indoor Home Amplifier 1 Output 20dB + 12V Power Supply Picokom

SKU
TEL560521
Brands: Televes
€43.08 Tax included
Availability: In stock
24/48 Hours

Picokom 20dB Indoor Home Amplifier with 12V Power Supply

This home amplifier from the Picokom series is used to extend the home terrestrial television network in our home. Its installation does not require any type of configuration, it is plug&play. It incorporates automatic gain regulation, without affecting the quality of our signal. It also incorporates a DC pass-through ON/OFF switch to power preamplifiers or BOSS systems.

It can be installed in 100x100mm junction boxes thanks to its small size and can be screwed to the wall. It has 1 VHF/UHF output with gain regulation up to 20dB. It incorporates LTE700/5G filtering and power supply through the input for BOSS system or preamplifiers.

Its connection system is EasyF, with which the connection of the cable to the amplifier is done in a very simple way, saving us time in installation, since connectorization of the coaxial cables is not necessary. You just have to unscrew the cover, insert the stripped coaxial cables, close the cover again and screw to secure the connection. Nothing faster, easier and safer!

-
+

Technical Specifications of Picokom 20dB Indoor Home Amplifier with 12V Power Supply



Number of outputs   1
TV output   No
Frequency range MHz
47 ... 400 470 ... 694
Gain dB
14 20
Automatic gain range dB
0 ... 20 0 ... 20
Output level DIN45004B dBμV
102 105
Output level EN60728-3 IMD3 2tones -35dB dBμV
109 112
Output level 10Ch DVB-T dBμV
-- 94
Output level 2CH DBV-T dBμV
93 --
Noise figure dB
4 4
Powering per inputs Vdc 12
Max current input mA 150
Input voltage Vac 220 ... 230
Mains frequency   50 Hz / 60 Hz
Max. current mA 30
Max. power consumption W 3.7
Operating temperature °C -5 ... 45
Protection index   20
More Information
EAN 8424450246481
Hight 0.060
Length 0.060
Width 0.020
DTT System DTT Amplifier
MANUFACTURER SERIES DTT Picokom
Color White
Type Indoor home amplifier
Entorno Interior
Input signal UHF, VHF
Outputs 1
Gain 20
LTE compatible Yes
Current bypass Terrestrial
Product Brand Televes
