TPLink 16 Port 1 Gb POE+ and 2 SPF 192 W Managed Switch 16 Port 1 Gb POE+ and 2 SPF 192 W

Name: TPLink 16 Port 1 Gb POE+ and 2 SPF 192 W Managed Switch 16 Port 1 Gb POE+ and 2 SPF 192 W
Brand: Tplink
SKU: TLSG1218MPE
Price: 285.03 EUR
Availability: InStock

SKU

TLSG1218MPE

Brands: Tplink

€285.03 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

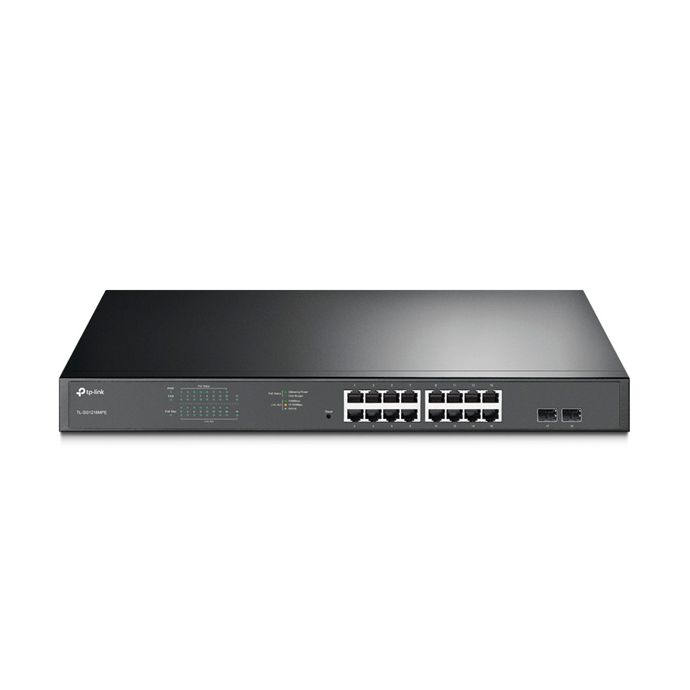

Semi-managed POE+ Switch TL-SG1218MPE 18P GIGA

It is a very complete switch with PoE with diverse functionalities and a very powerful performance.
This centrally managed smart switch features 18 Gigabit ports, 16 of which are PoE+ and the other 2 gigabit SPF, supporting up to 192W total power. In the PoE ports you will be able to connect cameras, telephones or IP access points using a single Ethernet cable that will provide them with both data and energy transmission, reducing infrastructure costs.
The switch is compatible with most PoE devices, such as IP cameras, access points, or IP phones. Although you can also connect non-PoE devices, such as PCs, printers and IPTV.
The TL-SG1218MPE complies with the 802.3af/at PoE+ standard by providing up to 30W on each PoE port, making it ideal for surveillance systems in small and medium-sized businesses.

Package content:
TL-SG1218MPE
• Power cord
• Installation guide
• Rack mount kit
• Rubber legs

Details

Technical Specifications of Semi-managed POE+ Switch TL-SG1218MPE 18P GIGA

Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface	16 10/100/1000Mbps RJ45 ports (Auto Negotiation / Auto MDI / MDIX) 2 Gigabit SFP ports
Network Media	• 10BASE-T: category 3, 4, 5 UTP cable (maximum 100 m) • EIA / TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: category 5, 5e UTP cable (maximum 100 m) • EIA / TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: category 5, 5e, 6 or higher UTP cable (maximum 100 m) • EIA / TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF
Number of Fans	2 fans
Physical Security Lock	Yes
Power supply	100–240V AC, 50/60 Hz
PoE+ ports (RJ45)	Standard: Compatible with 802.3at / 802.3af PoE+ ports: 16 ports Power supply: 192W
Dimensions	17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting	Rack mount
Maximum Power Consumption	18.73 W (220/50Hz. No PD connected) 217.22 W (220 / 50Hz. With 192W PD connected)
Max Heat Dissipation	63,89 BTU / h (no PD connected) 741,15 BTU / h (con PD de 192 W connected)

PERFORMANCE
Switching Capacity	36 Gbps
Packet Forwarding Rate	26.78 Mbps
MAC Address Table	8K
Packet Buffer Memory	4.1 Mbit
Jumbo Frame	10 KB

SOFTWARE FEATURES
Quality of service	Supports 802.1p priority / DSCP based on ports Supports 4 priority queues rate limit storm control
L2 Characteristics	IGMP Snooping V1/V2/V3 Static link aggregation port mirroring cable diagnostics loop prevention
VLAN	Supports up to 32 VLANs simultaneously (of 4K VLAN IDs) MTU / port / VLAN tag
Management	web-based GUI Easy Smart Configuration Utility
Transmission Method	Store and Forward

OTHERS
Certifications	CE, FCC, RoHS
Package content	• TL-SG1218MPE • Power cord • Installation guide • Rack mount kit • Rubber legs
Environmental factors	• Operating temperature: 0–50 °C (32–122 °F) • Storage temperature: -40–70 °C (-40–158 °F) • Operating humidity: 10 to 90% relative humidity non-condensing • Storage humidity: 5–90% relative humidity non-condensing

More Information

More Information
EAN	6935364086923
Hight	0.530
Length	0.080
Width	0.250
RED - System	POE+
RED - SERIE	16 Ports
Color	Black
Network Equipment	Switch
Ports	18
Data Speed	Gigabit (10/100/1000Mbps)
PoE	Yes
Product Brand	Tplink
