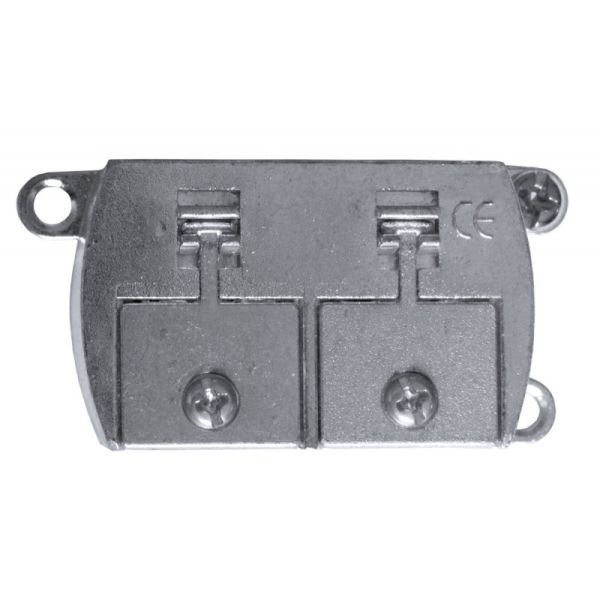

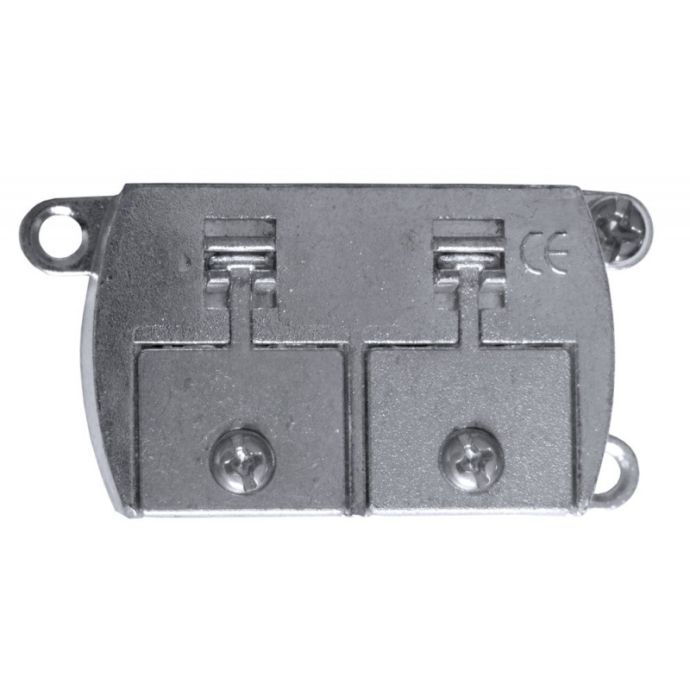

Shunt 1 Output Connector Flange Connector 20 dB Tecatel

SKU
TECDERTIP1S20
Brands: Tecatel
€4.85 Tax included
Availability: In stock
24/48 Hours

Shunt 1 Output Connector Flange Connector 20 dB Tecatel

EasyF shunt connection with 1 output and 20 dB of attenuation, to distribute both DTT and satellite signals (5-2400 Mhz).  It has low insertion losses.

The shunts are passive distribution equipment, which are placed in the installations of several dwellings and are governed by ICT regulations.

Its small size (59x30x18mm) and its 61gr of weight, allows its installation to be easy and comfortable. Its installation must be indoors, or in case it is outdoors, it must be protected from weather conditions by a copper.

It has a high quality Zamak shielding. Its impedance is 75Ω.

-
+

Technical Specifications of Tecatel's 1 Output Flange Type Shunt with 20 dB of actuation



Banda (MHz)



Bypass losses (dB)

5-1000

20±1.0

1000-2400

20±2.0

Passage losses (dB)

5-40

1,5

40-1000

1,5

1000-2050

2.5

2050-2150

2.5

2150-2300

2,8

Isolation (between outputs) (dB)

5-40

>15

40-1000

18

1000-2050

18

2050-2150

18

2150-2300

18

Return losses (dB)

5-2400

9

Dimensions (mm)

59x30x18

Weight (gr)

61

Impedance (Ω)

75

More Information
EAN 8430549034778
Hight 0.050
Length 0.030
Width 0.020
DTT System DTT & SAT Distribution
MANUFACTURER SERIES DTT Brida Connector
Color Silver
TV-SAT Distribution Equipment Diverter
Entorno Interior
TV-SAT Distribution Connection Flange
Outputs 1
Input signal DAB, FI, FM, UHF, VHF
Insertion Loss (dB) 20
Current bypass Yes
Product Brand Tecatel
