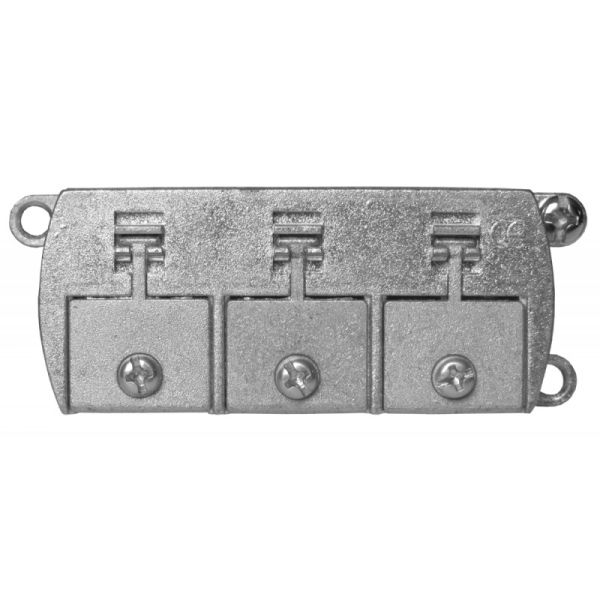

Shunt 4 Output Connector Flange Connector 12 dB Tecatel

Name: Shunt 4 Output Connector Flange Connector 12 dB Tecatel
Brand: Tecatel
SKU: TECDERTIP4S12
Price: 7.16 EUR
Availability: InStock

SKU

TECDERTIP4S12

Brands: Tecatel

€7.16 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

Shun 4 Output Connector Flange Connector 12 dB Tecatel

EasyF shunt connection with 4 output and 12 dB of attenuation, to distribute both DTT and satellite signals (5-2400 Mhz). It has low insertion losses.

The shunts are passive distribution equipment, which are placed in the installations of several dwellings and are governed by ICT regulations.

Its small size (59x30x18mm) and its 61gr of weight, allows its installation to be easy and comfortable.

Its installation must be indoors, or in case it is outdoors, it must be protected from weather conditions by a copper.

It has a high quality Zamak shielding.

Its impedance is 75Ω.

Details

Technical Specifications of Tecatel's 4 Output Flange Type Shunt with 12 dB of actuation

	Band (MHz)
Bypass losses (dB)	5-1000	12±1.0
Bypass losses (dB)	1000-2400	13±2.0
Passage losses (dB)	5-40	4,5
	40-1000	5,0
	1000-2050	5,5
	2050-2150	6,0
	2150-2300	6,0
Isolation (between outputs) (dB)	5-40	>15
	40-1000	18
	1000-2050	18
	2050-2150	18
	2150-2300	18
Return losses (dB)	5-2400	9
Dimensions (mm)	80x30x18
Weight (gr)	87
Impedance (Ω)	75

More Information

More Information
EAN	8430549035300
Hight	0.050
Length	0.030
Width	0.010
DTT System	DTT & SAT Distribution
SERIES DTT	Brida Connector
Color	Gray
TV-SAT Distribution Equipment	Diverter
Entorno	Interior
TV-SAT Distribution Connection	Flange
Outputs	4
Input signal	DAB, FI, FM, UHF, VHF
Insertion Loss (dB)	12
Current bypass	Yes
Product Brand	Tecatel
