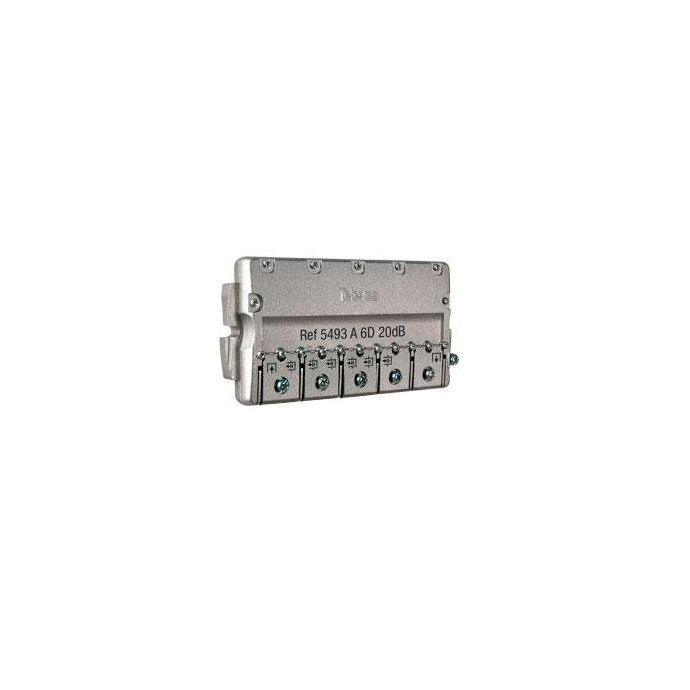

Shunt 6 outputs (20dB) with flange connection type EasyF

SKU
TEL5493
Brands: Televes
€17.90 Tax included
Televes
Availability: In stock
24/48 Hours

 Shunt Type 6 Outlets 6B 20dB Televes.

6-lead shunt with EasyF Connection System

This splitter is ideal for SMATV (Community Antenna and Television System) signals. Its compact design and efficient performance make it a great choice for distributing signals in buildings.

Highlights:

  • EasyF Connection: Makes installation super easy and fast.

  • Bypass Loss: With 20dB bypass loss, it is perfect for 4th and 5th floors, ensuring a strong and stable signal.

  • Compact Design: Easily fits indoors without taking up much space.

  • Electronic Efficiency: Offers top performance with minimal signal loss for better quality transmission.

Recommendations:

  • Indoor Installation: Best indoors to protect from the elements.

  • Presentation: Comes in boxes of 6 units, easy to handle and store.

Technical Specifications of the 6-Output Shunt Type 6B 20dB. Ref. 5494 from Televes.

Frequency range MHz 5 ... 2400
Number of derivations   6
Floors   2y3
Tickets/Bands   TERR  SAT
Step losses dB 3 3.5
Bypass losses dB 20 20
Rejection between derivation dB > 40 > 40
Connectors   Type "EasyF"
Max voltage V 40
Max current mA 300
DC Step   Sal.→Entr.

Physical Data

Net weight: 238g

Gross weight: 238g

Width:121mm

Height:59mm

Depth:15mm

Main product weight:238g

More Information
EAN8424450119037
Hight0.129
Length0.097
Width0.069
DTT SystemDTT & SAT Distribution
SERIES DTTBrida Connector
ColorSilver
TV-SAT Distribution EquipmentDiverter
EntornoInterior
TV-SAT Distribution ConnectionFlange
Outputs6
Input signalFI, FM, UHF, VHF
Insertion Loss (dB)20
Current bypassYes
Product BrandTeleves
