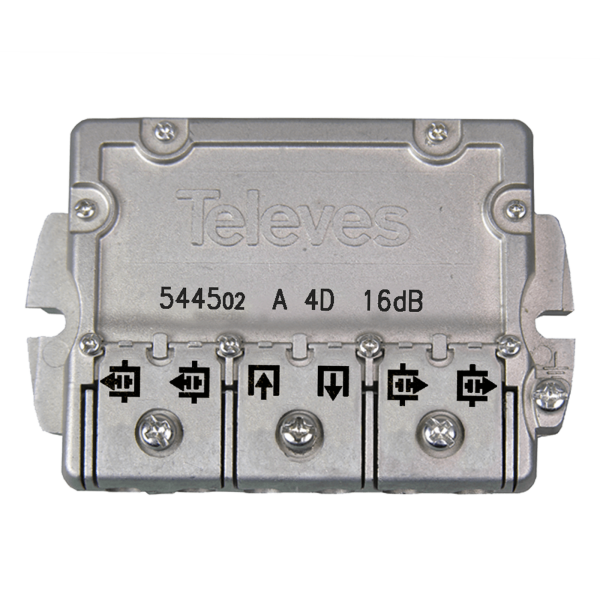

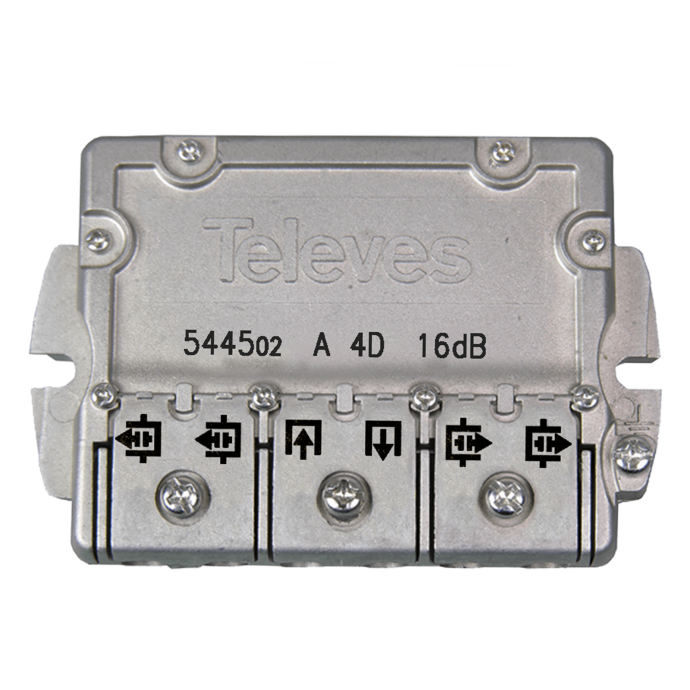

Shunt with flange 4 outputs (16 dB)

Name: Shunt with flange 4 outputs (16 dB)
Brand: Televes
SKU: TEL544502
Price: 13.03 EUR
Availability: InStock
Rating: 80 (1 reviews)

SKU

TEL544502

Brands: Televes

€13.03 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

4-way shunt with 5-2400 MHz flange of 16dB

544502 passive bypass type A equipment with 4 "EasyF" outputs by Televes, for SMATV signals.

Recommended for installation indoors, between floors 2 and 3, due to its attenuation of 17dB for terrestrial frequencies and 16dB for satellite.

Its connections with EasyF flange greatly facilitate its connection, in addition to reducing the cost when made with bare wires directly, without connectors.

Details

4-way shunt with terrestrial and satellite flange (5-2400MHz) with 16dB attenuation, designed to be installed on floors 2 and 3.

What are the main features of the Televes 544502 shunt?

EasyF connection system: easy to install, savings on mounting
Made of Zamak, high shielding
Outstanding reliability: automated manufacturing using new generation micro-components
Improves through losses
Outstanding electrical behaviour: impulsive noise reduction
Grounding screw provided
Bidirectional DC pass between input and pass output

What technical specifications does the Televes 544502 shunt have?

Frequency range	MHz	5-2400
		5-862	950-2400
Number of outputs		4
Floors		2 & 3
Through loss	dB	3,3	3,5
Tap loss		17	16
Rejection between taps		>27	>20
DC Pass (max.)	mA	300 (in.↔out.)

More Information

More Information
EAN	8424450143773
Hight	0.153
Length	0.088
Width	0.064
DTT System	DTT & SAT Distribution
MANUFACTURER SERIES DTT	Brida Connector
Color	Silver
TV-SAT Distribution Equipment	Diverter
Entorno	Interior
TV-SAT Distribution Connection	Flange
Outputs	4
Input signal	FI, FM, UHF, VHF
Insertion Loss (dB)	16
Current bypass	Yes
Product Brand	Televes
