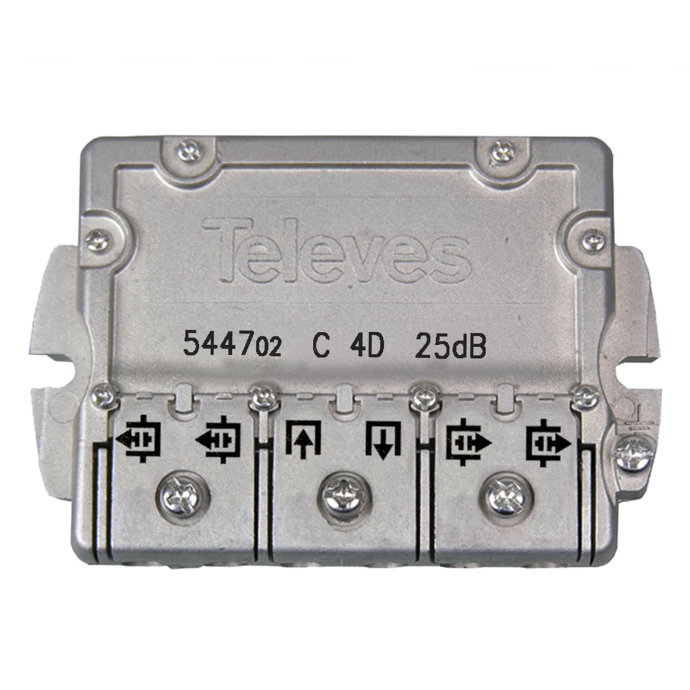

Indoor Tap with 4 outputs EasyF (25 dB)
SMATV (5 - 2400 MHz) type C shunt of the Televes brand for the interior of the house, with fast flange type connections.
This shunt has 4 outputs and 25 dB of losses , recommended for installation in plants 6 and 7.
It offers an easy and fast installation since its EasyF connection does not require any type of connector. You just have to strip the cable and insert it into the shunt itself.
4-output shunt with flange for terrestrial and satellite signals with high attenuation 25dB designed to be installed on floors 6 and 7.
What are the main features of the Televes 544702 shunt?
EasyF connection system: easy to install, savings on mounting
Made of Zamak, high shielding
Outstanding reliability: automated manufacturing using new generation micro-components
Improves through losses
Outstanding electrical behaviour: impulsive noise reduction
Grounding screw provided
Bidirectional DC pass between input and pass output
What technical specifications does the Televes 544702 shunt have?
Frequency range
MHz
5-2400
5-862
950-2400
Number of outputs
4
Floors
6 & 7
Through loss
dB
0,5
0,5-2,1
Tap loss
26
24
Rejection between taps
>30
>25
DC Pass (max.)
mA
300 (in.↔out.)
More Information
EAN
8424450143797
Hight
0.153
Length
0.088
Width
0.064
DTT System
DTT & SAT Distribution
MANUFACTURER SERIES DTT
Brida Connector
Color
Silver
TV-SAT Distribution Equipment
Diverter
Entorno
Interior
TV-SAT Distribution Connection
Flange
Outputs
4
Input signal
FI, FM, UHF, VHF
Insertion Loss (dB)
25
Current bypass
Yes
Product Brand
Televes
File
Label
Size
Download
Ficha técnica del derivador 544702 de Televes
101.3 KB
