Simplebus Actuator Relay (1 and 2) 1256

SKU

COM1256

Brands: Comelit

€152.12 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

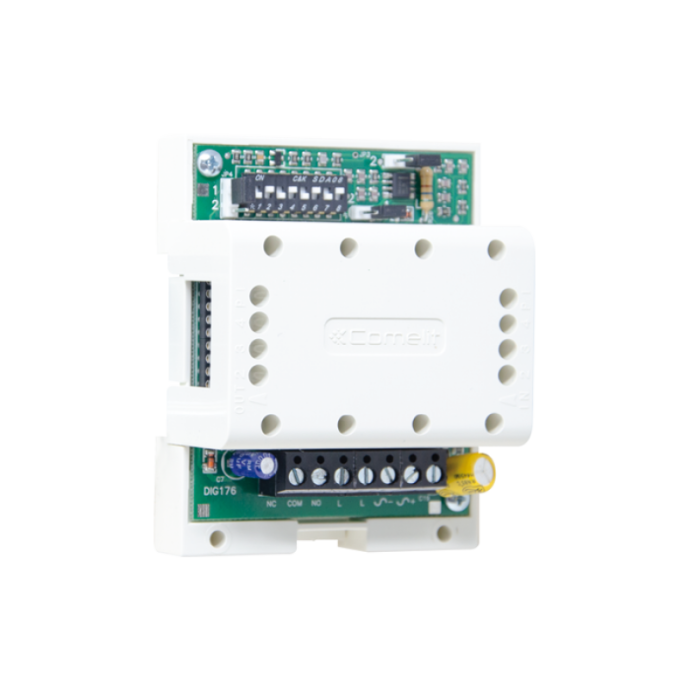

Digital Relay Actuator Module for Comelit Simplebus 1 and 2 1256 Systems

12-24VAC/VDA programmable actuator relay with 10A maximum.

It can be used in any installation with a Simplebus 1 and 2 system.

Dimensions: 65 x 85 x 35mm. DIN rail mounting with 4 DIN modules. Made of white RAL9010 ABS plastic.

Supplied with line bypass terminal (Reference 1214/2C).

Technical Specifications of the Comelit Digital Relay Actuator Module for Simplebus 1 and 2 Systems 1256

ACTUATOR RELAY. SIMPLEBUS 1 AND 2
COMPATIBLE SYSTEMS
Audio/video Simplebus 2 with power supply art. 4888C	Yes
Audio/video Simplebus 2 with power supply art. 1210/1210A	Yes
Simplebus 2 audio/video kit with power supply art. 1209	Yes
Audio Simplebus 2 with power supply art. 1210/1210A	Yes
Audio Simplebus 1	Yes
ELECTRICAL CHARACTERISTICS
Type of power supply	External power supply
PoE power supply
HARDWARE FEATURES
Number of outputs (n°)	1
Type of outputs	Relay (C-NO-NC, 10A@12÷24 VAC/VDC)
GENERAL FEATURES
CE certifications	RoHS II - 2011/65/UE (EN IEC 63000:2018), EMC 2014/30/UE (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
Type of finishing materials	ABS
Product color	White RAL9010
Depth (mm)	85
Height (mm)	35
Width (mm)	66
MAIN FEATURES
Operating temperature (°C)	-10 ÷ 30
Operating humidity (RH max) (%)	25 ÷ 95
DIN rail mounted	Yes
DIN modules (no.) (n°)	4

More Information

More Information
EAN	8023903131499
Hight	0.200
Length	0.040
Width	0.100
System	Accessories
SERIE	Spare
Color	White
Type	Accessories
Product Brand	Comelit
