Simplekey Basic Access Control Module

Name: Simplekey Basic Access Control Module
Brand: Comelit
SKU: COMSK9000U
Price: 284.31 EUR
Availability: InStock

SKU

COMSK9000U

Brands: Comelit

€284.31 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

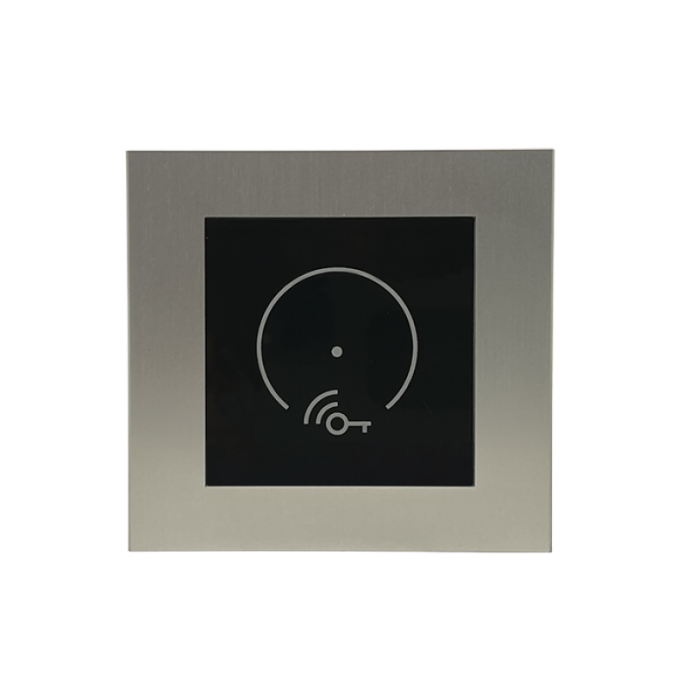

Simplekey Basic Ultra SK9000U Access Control Module

This module is both a reader and an access controller for the 4+N/Simplebus/ViP Ultra series Comelit entrance panels.

Simplekey technology allows keys or cards to be encoded through connection to the PC's USB port.Simple to install and use, the key is configured and ready to use.

Reading capacity of up to 1,500 keys and cards, which means that it can memorize up to 1,500 users.

It can be mounted on the wall or embedded in the wall, with a special accessory. It comes with an anodized aluminum alloy coating.

Dimensions: 100x90x35mm

Details

Technical Specifications of the Simplekey Basic Ultra SK9000U Access Control Module

Master key creation.

The master key allows entering the programming mode without having to open the module. f Bring the key closer to the reader.
» The first key/card that is brought close to the unit will become the master key.
» The green LED on the reader will flash three times to indicate that the master key has been created.

Creation of user keys.

Pass the master key in front of the reader.» The reader's LED will flash rapidly green/red to indicate that programming mode is being entered.
2. Pass in front of the reader, one at a time, the keys/cards to be registered.
3. To exit the programming mode, pass the master key in front of the reader again or wait 15 seconds without performing any operation.
» The reader LED will stop flashing.

TOUCH-SCREEN MODULE, ULTRA
GENERAL DATA
Type	Modular
Height (mm)	180
Width (mm)	100
Depth (mm)	35
Product weight (g)	200
Type of finishing materials	Polycarbonate
Product color	Black RAL9005
Flush-mounted	Yes, with a dedicated accessory
Wall-mounted	Yes, with a dedicated accessory

DISPLAY
Display type	Graphic LCD
Display size (")	5
Touch screen	Yes, capacitive
Resolution (pixel)	800x480

ELECTRICAL CHARACTERISTICS
Type of power supply	Power supply from video door entry bus
Supply voltage	33VDC

ELECTRICAL CHARACTERISTICS
Absorption in stand-by (W)	2,85
Maximum absorption (W)	3,3

HARDWARE FEATURES
Call type	Digital
Type of buttons	Capacitive
Backlight colour	White, Black
Clamps	GND D0 D1 IN D2- D2+ D1+ D1- GND
Integrated proximity reader	RFID Mifare Classic
Communication ports	Micro-USB, RS485, 1 x Wiegand, Ethernet

NETWORK AND COMMUNICATION PROTOCOLS
Bluetooth	Yes
Type of LAN network	Ethernet 10 Mbit/s
IP address assignment	Auto IP, DHCP, Static
Wiegand	Keypad: 4 bits for each digit, without parity, adding the "B" digit at the end. Comelit Cards/Keys: 26 bit, Maximum distance: 150m (UTP cat. 5 cable)

PROGRAMMING MODE
ViP Manager software	Yes

ENVIRONMENTAL AND COMPLIANCE FEATURES
IP protection rating	IP65
Vandal Resistant rating (IK code)	IK08
Operating temperature (°C)	-25 ÷ 55
Operating humidity (RH max) (%)	25 ÷ 95
Environmental class	IV
