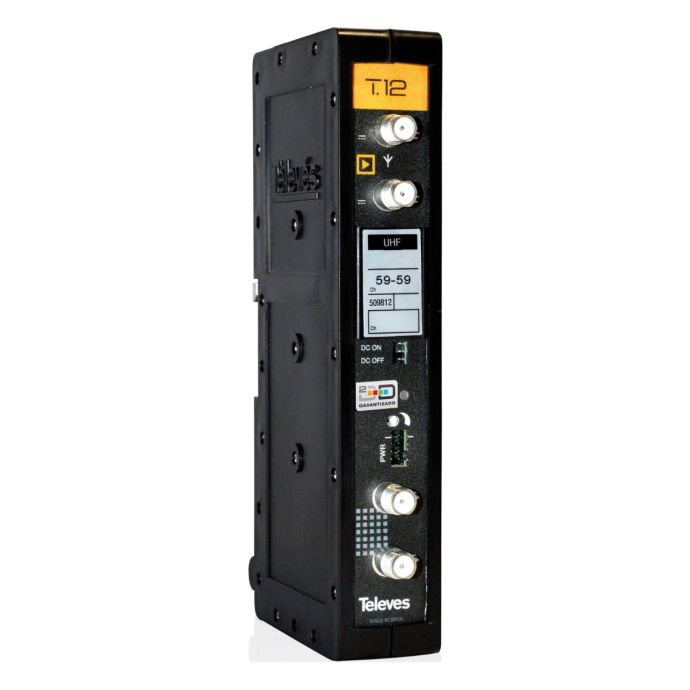

Single Channel DTT Amplifier for T03/T12 SELECTIVE

SKU
TEL509812
Brands: Televes
€88.94 Tax included
Availability: On request
1 to 7 days

Televes DTT Single Channel Amplifier for Selective T12 509812

Single channel amplifier for DTT frequency amplification (470-862MHz). This amplifier is used together with the rest of the single channel amplifiers forming a head-end. It is necessary for its operation the rail (it can be installed on DIN rail, chest or rack) and the power supply. It has a very high adjustable gain.

With Televés T.12 single channel amplifiers, an unbeatable performance in signal processing is achieved, with precise and simple frequency adjustments.

T.12 modules are manufactured on state-of-the-art robotized lines and subjected to the strictest quality controls, an unprecedented guarantee of reliability and stability. Prepared for the adaptation to the incipient relocation of the digital dividend, this product bears the Televés LTE Ready seal.

**You must tell us, in the comments field that you will find during the purchase process, the channel number you need.

-
+

Technical Specifications of the Single-Channel DTT Amplifier for T03/T12 SELECTIVE from Televes

Bands   UHF
Frequency range MHz 470 ... 890
Channels   1
CCIR channel bandwidth MHz 8
Gain dB 50
Gain regulation range dB 0 ... 30
EN50083 output level dBµV 118
Input supply voltage Vdc 24
Max input current mA 100
Supply voltage Vdc 24
Max current mA 195
Flatness dB < 2
Adjacent channel rejection dB > 18
2 adjacent channels rejection dB > 50
Protection index (IP)   20
Operating temperature °C -5 ... 45
More Information
EAN 8424450239605
Hight 0.000
Length 0.000
Width 0.000
DTT System DTT Amplifier
MANUFACTURER SERIES DTT T12
Color Black
Input signal DAB, FM, UHF, VHF
# Inputs 1
Gain 50
Max. output level Ganancia (dB/uV) 118
LTE compatible No
Current bypass Terrestrial
Product Brand Televes
