Single mode Fiber Optic Patch Cord 3mm Simplex SC/APC LSZH G657A2 18m End Traction

SKU
EK361127
Brands: EKSELANS
€22.00 Tax included
Availability: In stock
24/48 Hours

Simplex Singlemode FO Patch Cord with 18m SC/APC Connector and Traction on One End

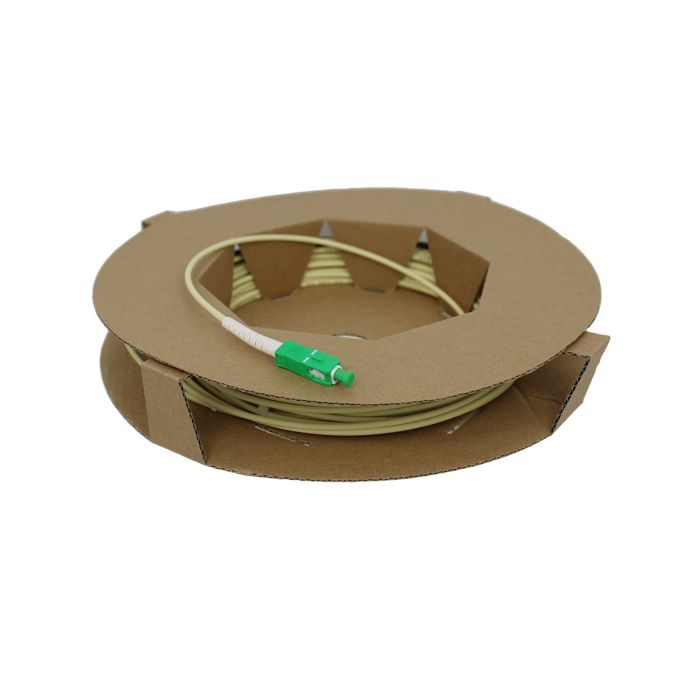

This fiber optic cable comes with EK's new patented Roller system, a cable carton dispensing system with reduced weight and size, very manageable in any situation. It allows the coils to rotate on themselves, facilitating their unwinding. Accepts light coils from less than 1kg up to 30kg coils. It is used in FTTH installations and ICT-2 installations.

This patch cord comes with both ends pre-connected with flexible SC/APC connectors. Its coverage is CPR Dca. The cable is single-mode simplex G657A2 and works with wavelengths between 1310 to 1625nm. This cable is halogen free, comes in white.

This cable is very flexible and as a novelty it has a puller at one end with a traction system with a mounted connector.

It comes in a 12 meter coil.

-
+

Technical Specifications of the Simple Single-Mode FO Patch Cord with 18m SC/APC Connector and Traction on One End



REFERENCE



PCR 18 FEK

Code



361127

Wavelength

nm

1310-1625

Return losses

dB

≥65

Insertion loss

dB

≤0,12

Fiber type



Monomode 900um G657-A2 LSZH Dca -s1,d0,a1.

Connectors



2 x SC / APCR flexible

Traction system



Fiber cable length

m

18

Dimensions (An x Al x Fo)

mm

235 x 215 x 30

Packaging

Uds

1 / 16

More Information
EAN 8436597791748
Hight 0.300
Length 0.230
Width 0.230
System DTT Monomode
Serie 18m
Fiber type Singlemode
Entorno Interior
Color White
Product Brand EKSELANS
Write Your Own Review
You're reviewing:Single mode Fiber Optic Patch Cord 3mm Simplex SC/APC LSZH G657A2 18m End Traction
Your Rating
File Label Size Download
pdf Ficha técnica Latiguillo Fibra Óptica Monomodo 3mm Simplex SC/APC LSZH G657A2 18m Traccion en un Extremo 241.6 KB Download
