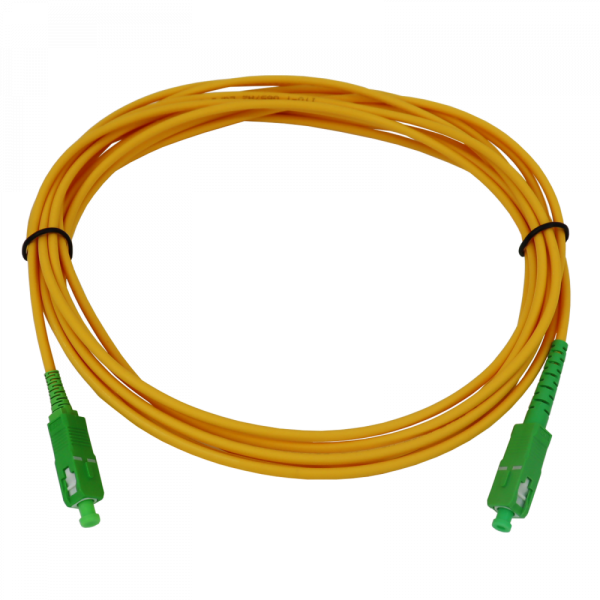

Singlemode Fiber Optic Patch Cord 3mm Simplex SC/APC 30m

SKU
TEL232615
Brands: Televes
€17.71 Tax included
13% Discount for professionals
Televes
Availability: On request
1 to 7 days
Be the first to review this product

232615 double FO single-mode patch cord with 30m SC/APC connector

The FO 232615 patch cord allows the connection of network elements through single-mode fiber optics. As they are double patch cords, they are suitable for point-to-point networks where the same window is used for upload and download traffic.

Because they have SC/APC connectors, they can also be used in Video Overlay headers with T0X devices.

This hose has blockers and fasteners to hold the fibers together, although they can also be used independently.

-
+

Technical Specifications of the 232615 single-mode FO double patch cord with 30m SC/APC connector

The 232615 fiber optic patch cord provides low attenuation and high reliability.

What technical characteristics does the hose 232615 have?

Mechanically offset connectors at one end to facilitate their passage through pipes.
They have blockers and fasteners to hold the fibers together.
Fiber identifiers are included.
Made with LSFH ITU-T G.657A2 fiber, which provide low attenuation levels and high reliability.

What technical specifications does the 232615 hose have?

Euroclass   Dca
Euroclass: Smoke Production   s2
Euroclass: Flaming droplets   d2
Euroclass: Acidity   a1
Fiber core type   Single-mode (ITU-T-G.657A2)
Optical fiber type category   OS1
Fiber core diameter μm 9
Fiber cladding diameter μm 125
Coating buffer diameter μm 250
Cable structure   Tight buffer
Plastic buffer diameter mm 0.85
Outer sheath Diameter mm 3
Outer sheath Material   LSFH
Blocking jelly   No
Attenuation 1310nm dB/km < 0.8
Attenuation 1490nm dB/km < 0.8
Attenuation 1550nm dB/km < 0.8
Insertion losses in connector 1 dB < 0.5
Insertion losses in connector 2 dB < 0.5
Return losses in connector 1 dB > 60
Return losses in connector 2 dB > 60
Optical connector type 1   SC
Polishing type (Optical connector 1)   APC
Optical connector type 2   SC
Polishing type (Optical connector 2)   APC
Short tension N 450
Long tension N 200
Structure reinforcement element   Aramid fibers
Short crush (@100mm) N 500
Long crush (@100mm) N 100
Minimum bending radius mm 15
Operating temperature °C -20 ... 70



More Information
More Information
EAN 8424450265611
Hight 0.200
Length 0.030
Width 0.200
System DTT Optic Fiber
Serie 30m
Fiber type Singlemode
Entorno Interior
Color Orange
Product Brand Televes
