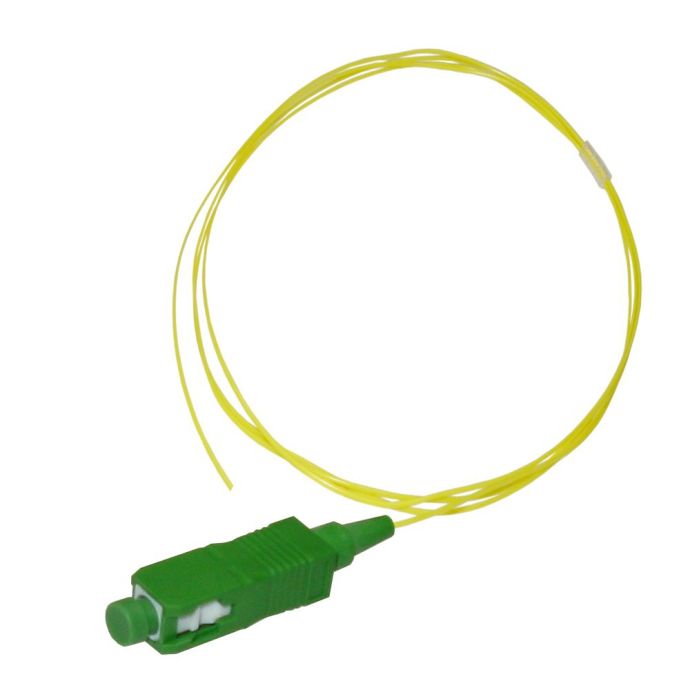

SM fiber optic pigtail without SC / APC sheath 1 meter long

SKU
PIGTAIL1M
Brands: Bitel Group
€1.00 Tax included
Availability: In stock
24/48 Hours

Pigtail monodomo without sheath of 1 meter

This fiber optic patch cable allows the transmission of optical signal from one device to another separated from each other by a distance of 1 meter.

This fiber optic pigtail is used to connect one end using the SC / APC connector and the other end to merge it to the fiber of the main cable.

Pigtail without sheath.

-
+

This pigtail has an SC / APC connector on one end and the free fiber on the other to be spliced with the main channel.

What technical characteristics does the pigtail SC / APC connector have?

  • SC / APC connector.
  • It is single mode.
  • It has no cover
  • It is halogen free.
  • It has a distance of 1m.
  • Insertion losses of 0.10dB.
  • Return losses of 61.4dB.

What is a fiber optic pigtail used for?

A fiber optic pigtail cable consists of a short fiber cord. A connector on one of the ends that interfaces with the equipment and fiber discovered at the other end to be spliced to the fiber of the main cable.

At the uncovered end of the pigtail cable, the color coating (Coating) is peeled and fused or spliced to a fiber or a multifiber trunk.

A pigtail splice "opens" the multifiber main cable for connection to the final equipment.

More Information
EAN 8421610010012
Hight 1.000
Length 0.001
Width 0.001
System DTT Optic Fiber
Serie 1m
Fiber type Singlemode
Entorno Interior
Product Brand Bitel Group
