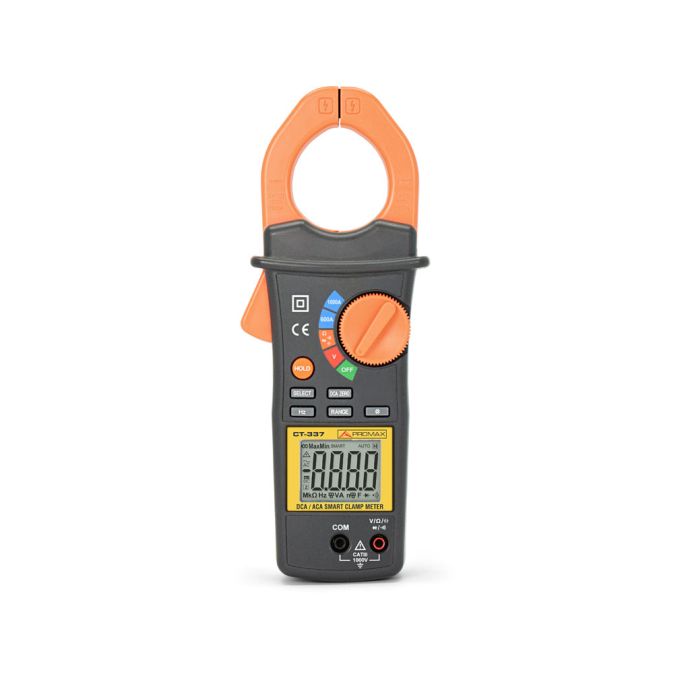

Smart 1000V/1000A Current Clamp

SKU
PROCT337
Brands: Promax
€162.62 Tax included
Promax
Availability: On request
1 to 7 days

Smart 1000V/1000A Current Clamp

This clamp belongs to the CATIII category and has automatic measurement selection, thus avoiding errors when configuring scales that could damage the device. This function makes this instrument suitable for educational centers, for people who are learning to use them.

It is designed for the daily use of the electrician installer, being able to work both in direct and in alternating.

The clamp can perform the following measurements: DC/AC voltage, DC/AC current, diode test, continuity measurement, resistance, frequency, capacity, intelligent selection of measurement and scale.

It is powered by a 9V LR61 battery. Comes with carry bag and test leads.

Technical Specifications of the Smart 1000V/1000A Current Clamp



DC VOLTAGE
Scales 600 mV / 6 V / 60 V / 600 V / 1000 V
Overload protection 500 V or 1000 V, depending on scale
AC VOLTAGE
Scales 6 V / 60 V / 600 V / 1000 V
Overload protection 1000 V
DC CURRENT
Scales 600 A / 1000 A
Overload protection 1000 A
RESISTANCE Scales 600Ω, 6kΩ, 60kΩ, 600 kΩ, 6MΩ, 60MΩ
DIODE TEST
  • short circuit/open circuit
  • test pass/fail
CONTINUITY TEST Acoustic indication when the resistance is less than 20 Ω
CAPACITY Scales 6nF, 60nF, 600nF, 6µF, 60µF, 600µF
FRECUENCY De 40 Hz a 1 kHz
INDICATION Backlit LCD display
DISPLAY FUNCTIONS HOLD MAX HOLD, MIN HOLD INTELLIGENT MEASUREMENT SELECTION
INTELLIGENT MEASUREMENT SELECTION
  • Automatic selection of DC/AC Voltage measurement with autorange and DC/AC current.
  • Automatic selection of Resistance, Diodes, Continuity or Capacitance measurement with auto range.
POLARITY Automática
OVERRANGE Protección contra sobrecarga en las medidas de tensión DC/AC, Corriente DC/AC, Capacidad, Frecuencia y Resistencia
Ø MAX CONDUCTOR 32 mm
POWER SUPPLY Pila de 9V tamaño LR61
PROTECTION CATEGOR CAT III (1000 V)
INCLUDED ACCESSORIES Test leads, Carrying bag
More Information
Hight0.000
Length0.000
Width0.000
ColorGray
Product BrandPromax
SystemWattmeters and Artificial Loads
SERIECAT III
InstrumentationTest
Write Your Own Review
You're reviewing:Smart 1000V/1000A Current Clamp
Your Rating
File Label Size Download
pdf Ficha Técnica Pinza Amperimétrica Smart 1000V/1000A 267.5 KB Download
