SMART AMP Mast Amplifier Kit 3 V / UHF LTE 5G Inputs + Power Supply

SKU
JOH7473KT
Brands: Johansson
€132.34 Tax included
Availability: In stock
24/48 Hours

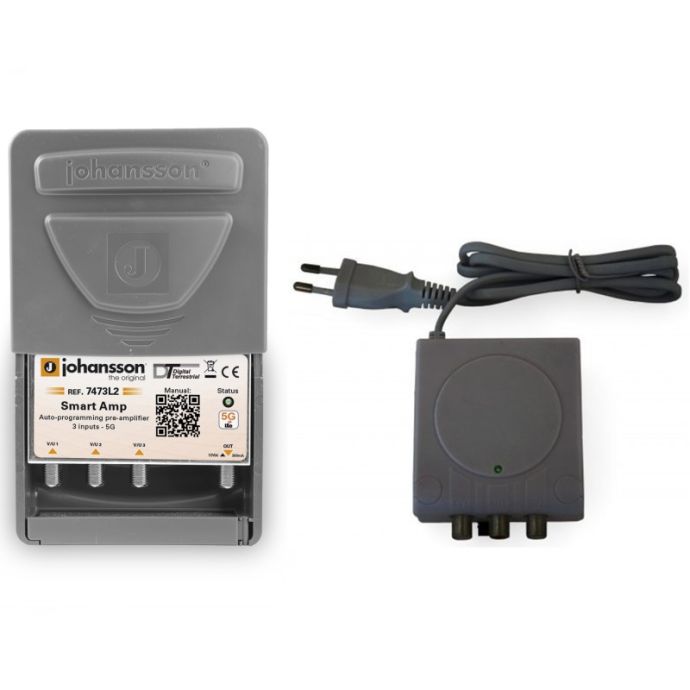

Mast Amplifier Kit 3 LTE 5G Inputs + 24Vdc Power Supply Johansson KIT7473L2


With Johansson's new SMART AMP mast amplifiers, you can combine multiple terrestrial antennas without losing channels.

The new 7473L2 preamplifier offers better signal quality, more TV channels, and easy setup with no setup.

It has 3 VHF / UHF inputs to mix terrestrial antennas with SMART AMP technology.

The amplifier performs an automatic search of all channels, amplifying the weakest signals so that all output channels have uniform power.

Channels with the same frequency will be amplified in the LTE band.

Anti 5G filters integrated in all inputs. Automatic processing and scanning at startup and after a double reboot.

This kit includes an external Johansson source (ref. 2437) of 12Vdc 400mA to power the amplifier through the coaxial cable.


For more information you can visit this article on our blog.
-
+

Mast Amplifier Kit 3 V/UHF Inputs SMART AMP LTE 5G with 24Vdc 300mA Power Supply

What technical specifications does the Johansson Amplification Kit KIT7473L2 have?

  • Reference: KIT7473L2
  • Tickets: 3
  • LTE rejection: 5G (CH48)
  • Channel plan: VHF BIII + UHF
  • LTE band rejection: >40 dB
  • Departure: 1
  • Frequency range: 174-862 MHz
  • LTE band reuse: L2 = CH50-69 (702MHz-862MHz)
  • Adjacent channel isolation: >35 dB
  • Input sensitivity: 45-109 dBμV
  • Power supply: 12V/400mA (DC through coaxial)
  • Power supply: External power supply (ref. 2437)
  • Dimensions: 120 x 115 x 50 mm
  • Operating temperature: -20 to +50 ºC
More Information
EAN 2074730402012
Hight 0.270
Length 0.070
Width 0.230
DTT System DTT Amplifier
MANUFACTURER SERIES DTT Kit
Color Gray
Type Mast amplifier
Entorno Exterior
Input signal UHF, VHF
# Inputs 3
Outputs 1
Max. output level Ganancia (dB/uV) 85
LTE compatible Yes
Current bypass Terrestrial
Product Brand Johansson
