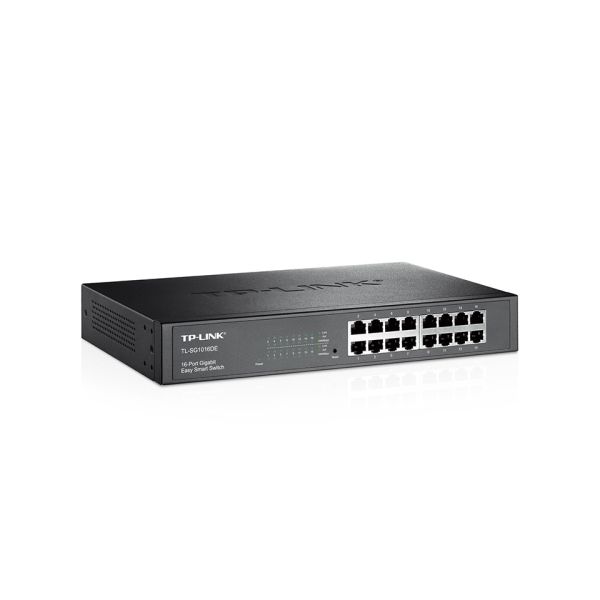

Smart Gigabit 16 Port Switch TL-SG1016DE

SKU
TL-SG1016DE
Brands: Tplink
€94.05 Tax included
% Discount for professionals
Tplink
Availability: On request
1 to 7 days
Be the first to review this product

16 gigabit ports switch

The TL-SG1016DE Switch is an ideal switch for home or small business networks, as it is an update to the non-manageable switches on the market.

This switch is plug-and-play and allows easy installation without the need of a specialized technician, in addition its robust metal box provides better protection.

This switch is equipped with intelligent management features, which make it effective both in simple networks and in high demand environments.

-
+

The auto negotiation on each port detects the link speed of the connected device and intelligently adjusts the configuration for optimal compatibility and performance.

What technical characteristics does the TL-SG1016DE switch have?

  • 16 ports 10/100 / 1000Mbps RJ45
  • Provides network monitoring, traffic prioritization and VLAN
  • Innovative energy efficiency technology that reduces energy expenditure by up to 40%
  • Simple set-up of the Network with plug-and-play connectivity
  • Centralized management of all Easy Smart switches with the Easy Smart Configuration Utility

What technical specifications does the TL-SG1016DE switch have?

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 16 RJ45 ports at 10/100/1000 Mbps with auto negotiation
(Automatic MDI / MDIX)
Network Media 10Base-T: UTP cable categories 3, 4, 5 (100 meters maximum)
EIA / TIA-568 100Ω STP (maximum 100 m)
100Base-Tx: UTP cable categories 5, 5e (maximum 100 meters)
EIA / TIA-568 100Ω STP (maximum 100 m)
1000Base-T: UTP cables category 5, 5e (maximum 100 meters)
Number of Fans Without fans
Power supply 100-240VAC, 50 / 60Hz
Power Consumption Maximum: 11.73W
Dimensions 11.6 * 7.1 * 1.7 inches (294 * 180 * 44 mm)
Mounting Rack Mount
Maximum Power Consumption 19.15W (220V / 50Hz)
Max Heat Dissipation 65.34 BTU / h
PERFORMANCE
Switching Capability 32Gbps
Packet Forwarding Rate 23.8Mpps
Address Table MAC 8K
Memory of the Packet Buffer 512KB
Jumbo Frame 9KB
SOFTWARE FEATURES
Quality of service Supports 802.1p / DSCP priority
Supports 4 priority queues
Shipping limit
Broadcast burst control
Characteristics L2 IGMP Snooping V1 / V2 / V3
Static Link Attachment
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Support up to 128 simultaneous VLANs (4K VLAN IDs)
MTU / Port / VLAN Tag
Transmission Method Store-And-Forward
OTHERS
Certifications FCC, CE, RoHS
Package content Desktop / rack switch with 16 Gigabit ports
Power cord
User manual
Resource CD
Rack mounting kit
Rubber points
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista ™ Windows 7/8/10, MAC® OS, NetWare®, UNIX® or Linux.
Environmental factors Operating temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉);
Storage temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉);
Operating humidity: 10% ~ 90% non-condensing;
Storage humidity: 5% ~ 90% non-condensing
More Information
More Information
EAN 6935364021269
Hight 0.300
Length 0.100
Width 0.200
System NOT POE
SERIE 16 Ports
Color Black
Network Equipment Switch
Ports 16
Data Speed Gigabit (10/100/1000Mbps)
PoE No
Product Brand Tplink
Reviews
Write Your Own Review
You're reviewing:Smart Gigabit 16 Port Switch TL-SG1016DE
Your Rating
Product Attachment
File Label Size Download
pdf Ficha técnica del switch TL-SG1016DE de TP-LINK 380.6 KB Download
