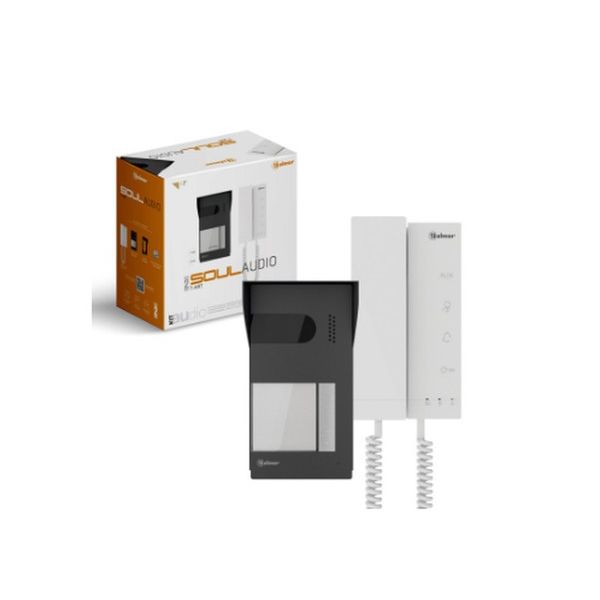

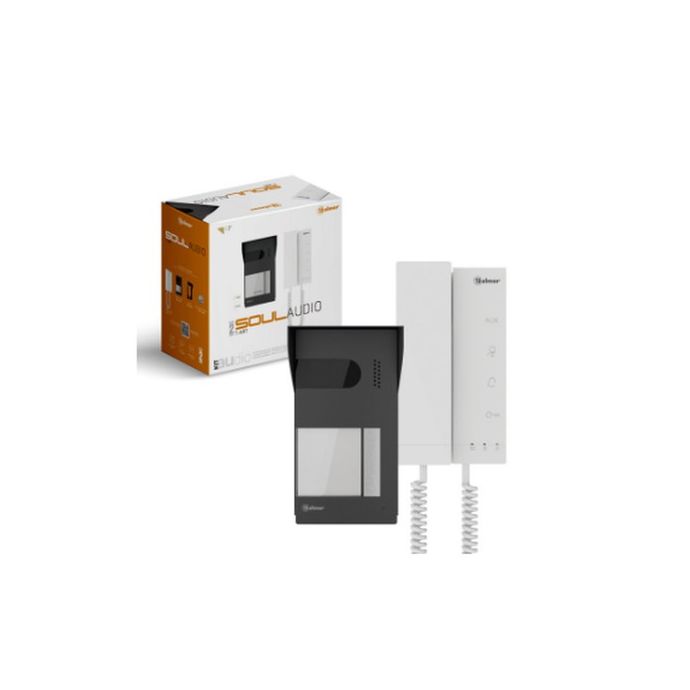

Soul Intercom Kit with 2-wire Technology S4110 T-ART

Intercom Kit with 2-wire technology S4110

Specifications and characteristics of the Soul T-Art Kit

T-ART / G2 + phone features:

• Duplex audio communication.
• Secret door opening and audio communications.
• Do not disturb function with indicator.
• Connection to the door button at the entrance of the landing.
• Differentiated ringtones depending on the place from which the call was made.
• Status LEDs: door open, do not disturb, on.
• Volume regulation.
• Auxiliary chime output.
• Intercommunication with other terminals of the house.
• Concierge call button.
• Additional pushbutton to activate a second electric lock connected to the entrance panel, or activate the staircase lights by using a SAR-G2 + digital relay unit.

• Housing made of white ABS plastic.
• Removable handset telephone cord with connectors.
• Capacitive pushbuttons with acoustic confirmation of pulsation.
• Surface installation.

Dimensions: 86 (W) x 154 (H) x 31 (P) mm.

SOUL/1A board features:

• Made of Zamak alloy, graphite color.
• Vandal-proof: IK-07 and IP-44 weatherproof.
• LEDs indicating the different states of the system (call in progress, in communication, door opening or system busy).
• Metallic call button.
• Secret audio communication, and door opening.
• Relay output for the activation of two doors.
• Surface installation.
• Includes visor.

Dimensions: 90 (W) x 170 (H) x 27 (D) mm
