Star/Cascade End Multiswitch 5Ex12S Sat/Terr 17dB by EK

Name: Star/Cascade End Multiswitch 5Ex12S Sat/Terr 17dB by EK
Brand: EKSELANS
SKU: EK090013
Price: 133.1 EUR
Availability: InStock

SKU

EK090013

Brands: EKSELANS

€133.10 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

EK Multiswitch Cascade of 4 Sat and 1 Terrestrial Inputs and 12 Outputs MS QC 512

A cascaded multiswitch is a device used in satellite and terrestrial television distribution systems that allows multiple receivers to be connected to a single antenna. To expand the number of outputs, the device allows serial or cascade connection, without signal loss. It is used in large buildings or residential complexes where many TV connections are required.

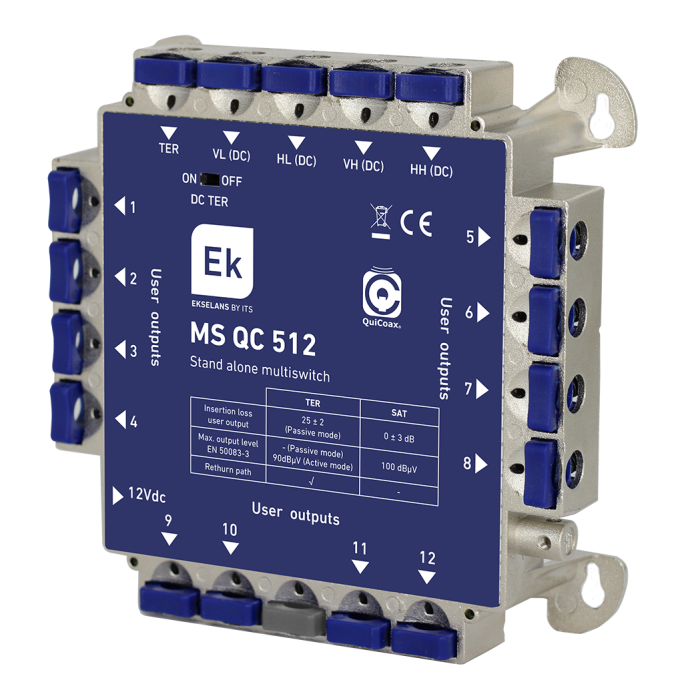

The MS QC 512 is a multiswitch of the QuiCoax F series from Ekselans, which works in final cascade mode and is independent. It has 5 inputs: 4 of them are satellite for all polarities and another terrestrial. It has 12 outputs for users.

Its QuiCoax connection system is very easy to use as no tools are required, reducing installation time. In addition, it guarantees excellent connections without losing quality and reducing the installation space, since we reduce the use of connectors.

This multiswtich has a high output level and a great linearity in all its bands with a minimum consumption. It is powered at 12Vdc (power supply not included, indicated power supplies FA 2600P and FA 1210).

Details

Technical Specifications of the EK MS QC 512 Cascade Multiswitch with 4 Sat and 1 Terrestrial Inputs and 12 Outputs MS QC 512

REFERENCE			MS QC 585	MS QC 58	MS QC 512
Code			090011	090012	090013
Type	Cascade / Expansion		x
Type	Estrella / Final Cascada			x	x
In		Num.	5 (1x TER + 4x SAT)
Out	User		8	8	12
Out	Cascade		5	-	-
Frecuency Range	TER	MHz	5 -790
Frecuency Range	SAT	MHz	950 - 2150
Bypass losses	SAT	dB	0 ± 3	0 ± 3	0 ± 3
Bypass losses	TER	dB	21 ± 2	21 ± 2	25 ± 2
Pass losses	SAT	dB	<3,5	-	-
Pass losses	TER	dB	<3	-	-
Maximun output level (DIN 45004B-35dBc)	SAT	dBµV	100	100	100
Isolation	Between entries (SAT- SAT)	dB	>28	>28	>28
Isolation	Between entries (SAT- SAT)	dB	>30	>30	>30
Power (external)	LNB	mA	210 (max) / LNB
	Amplification TER		ON/OFF DC PASS
	Amplificator lines (AMP)	Vdc	12
External source consumption	LNBs	mA	210
External source consumption	Mast amplifier TER		70
Consumption fron STB	Multiswitch		< 40 / STB Active
Work temperature		ºC	-20…+60

More Information

More Information
EAN	8436548999971
Hight	0.040
Length	0.100
Width	0.120
System SAT	SAT Multiswitch
MANUFACTURER SERIE SAT	Cascade
Color	Silver
# Input satellites	4
# Terrestrial inputs	1
# Inputs	5
#User outputs	12
Gain (dB)	17
Loos (dB)	3
Power	External (not provided)
Product Brand	EKSELANS
