Multiswitch Cascade of 4 Sat and 1 Terrestrial Inputs and 12 EK MS QCF 512 Outputs

A cascaded multiswitch is a device used in satellite and terrestrial television distribution systems that allows multiple receivers to be connected to a single antenna. To expand the number of outputs, the device allows serial or cascaded connection without loss of signal. It is used in large buildings or residential complexes where many television connections are required.

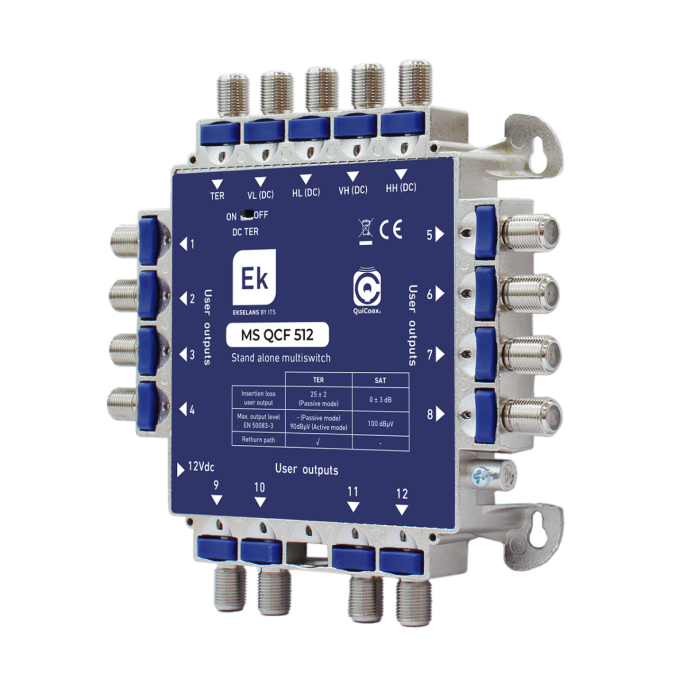

The MS QCF 512 is a multiswitch of the QuiCoax F series from Ekselans, which works in end cascade mode and is independent. It has 5 inputs: 4 of them are satellite for all polarities and another terrestrial. It has 12 outputs for users. It includes the F connectors, but you can convert it to QuiCoax by removing the F connectors.

Its QuiCoax connection system is very easy to use as no tools are required, reducing installation time. In addition, it guarantees excellent connections without losing quality and reducing installation space, since we reduce the use of connectors.

This multiswtich has a high output level and a great linearity in all its bands with a minimum consumption. It is powered at 12Vdc (power supply not included, indicated power supplies FA 2600P and FA 1210).

-
+

Technical Specifications of the EK Multiswitch Cascade of 4 Sat and 1 Terrestrial Inputs and 12 MS QCF 512 Outputs

REFERENCE   MS QCF 512
Code   90037
Type Cascada / Expansión
Estrella / Final Cascada   x
In   Num. 5 (1x TER + 4x SAT)
Out Usuario   12
Cascada   -
Range of frecuency TER MHz 5 -790
SAT   950 - 2150
Bypass losses SAT dB 0 ± 3
TER   25 ± 2
Pass losses SAT dB -
TER   -
Maximum output level
(DIN 45004B-35dBc)
SAT dBµV 100
Isolation Entre entradas (SAT- SAT) dB >28
Entre entradas (SAT- TER)   >30
Power (external) LNB mA 210 (max) / LNB
Amplificación TER   ON/OFF DC PASS
Line amplifiers (AMP) Vdc 12
External source consumption LNBs mA 210
TER mast amplifier   70
Consumption from STB Multiswitch   < 40 / STB Activo
Work temperature   ºC -20…+60
Dimensions (An x Al x Fo)   mm 120 x 120 x 35
More Information
EAN 8436597792387
Hight 0.040
Length 0.190
Width 0.150
System SAT SAT Multiswitch
MANUFACTURER SERIE SAT Cascade
Color Silver
# Input satellites 4
# Terrestrial inputs 1
# Inputs 5
#User outputs 12
Gain (dB) 17
Power External (not provided)
Product Brand EKSELANS
