Star/Cascade End Multiswitch 5Ex16S Sat/Terr 19dB by EK

SKU
EK090015
Brands: EKSELANS
€294.03 Tax included
Free shipping
(Iberian Peninsula)
Availability: In stock
24/48 Hours

EK Multiswitch Cascade of 4 Sat & 1 Terrestrial Inputs and 16 Outputs MS QC 516

A cascaded multiswitch is a device used in satellite and terrestrial television distribution systems that allows multiple receivers to be connected to a single antenna. To expand the number of outputs, the device allows serial or cascaded connection without loss of signal. It is used in large buildings or residential complexes where many television connections are required.

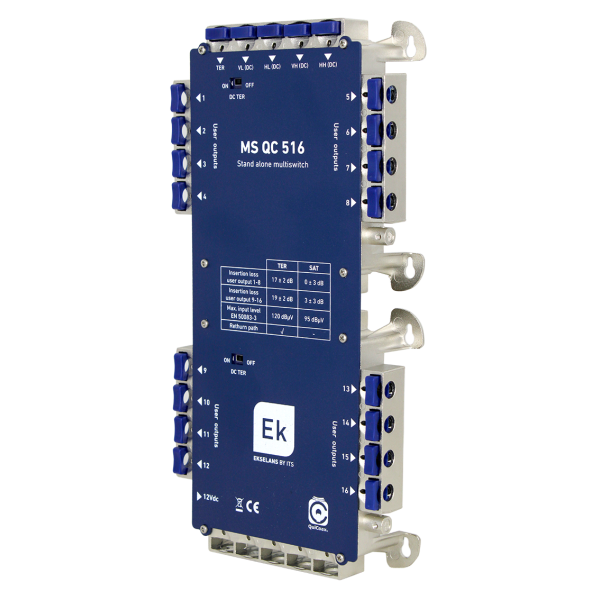

The MS QC 516 is a multiswitch of the QuiCoax F series from Ekselans, which operates in end cascade mode and is independent. It has 5 inputs: 4 of them are satellite for all polarities and another terrestrial. It has 16 outputs for users.

Its QuiCoax connection system is very easy to use as no tools are required, reducing installation time. In addition, it guarantees excellent connections without losing quality and reducing installation space, since we reduce the use of connectors.

This multiswitch has a high output level and a great linearity in all its bands with a minimum consumption. It is powered at 12Vdc (power supply not included, indicated power supplies FA 2600P and FA 1210).

-
+

Technical Specifications of the EK Multiswitch Cascade of 4 Satellite and 1 Terrestrial Inputs and 16 Outputs MS QC 516

REFERENCE   MS QC 516
Code   090015
Type Star/Cascade
In   Num. 5 (1x TER + 4x SAT)
Out User 000016
Frequency range TER MHz 5 -790
SAT 950 - 2150
Bypass losses TER dB 17 ± 2 (1-8)
TER 19 ± 2 (9-16)
TER X
SAT 0 ± 3 (1-8)
SAT   3 ± 3 (9-16)
SAT   X
Maximum output level
(DIN 45004B-35dBc)
SAT dBµV 000100
Isolation Entre entradas (SAT-SAT) dB >28
Entre entradas (SAT-TER) >30
Power (external) LNB mA 210 (max) / LNB
Amplificación TER   ON/OFF DC PASS
Amplificadores línea (AMP) Vdc 000012
External source consumption LNBs mA 000300
Amplificador mástil TER 000070
Consumption from STB Multiswitch < 40 / STB Activo

223 / 5.000
Frequency range

Bypass losses





"Maximum output level
(DIN 45004B-35dBc)"
Isolation

Power (external)


External source consumption

Consumption from STB
Work temperature
  ºC -20…+60
Dimensions (W x H x D)   mm 243 x 120 x 35
More Information
EAN 8436597790314
Hight 0.050
Length 0.250
Width 0.180
System SAT SAT Multiswitch
MANUFACTURER SERIE SAT Cascade
Color Silver
# Input satellites 4
# Terrestrial inputs 1
# Inputs 5
#User outputs 16
Gain (dB) 19
Power External (not provided)
Product Brand EKSELANS
Write Your Own Review
You're reviewing:Star/Cascade End Multiswitch 5Ex16S Sat/Terr 19dB by EK
Your Rating
File Label Size Download
pdf Certificado ce Multiswitch Estrella/Final de Cascada 5Ex16S Sat/Terr 19dB de EK 66.9 KB Download
