Star/Cascade End Multiswitch 5Ex16S Sat/Terr 21dB QuiCoax by EK

SKU
EK090038
Brands: EKSELANS
€294.03 Tax included
Free shipping
(Iberian Peninsula)
Availability: In stock
24/48 Hours

Multiswitch Cascade of 4 Sat and 1 Terrestrial Inputs and 16 Outputs EK MS QCF 516

A cascaded multiswitch is a device used in satellite and terrestrial television distribution systems that allows multiple receivers to be connected to a single antenna. To expand the number of outputs, the device allows serial or cascaded connection without loss of signal. It is used in large buildings or residential complexes where many television connections are required.

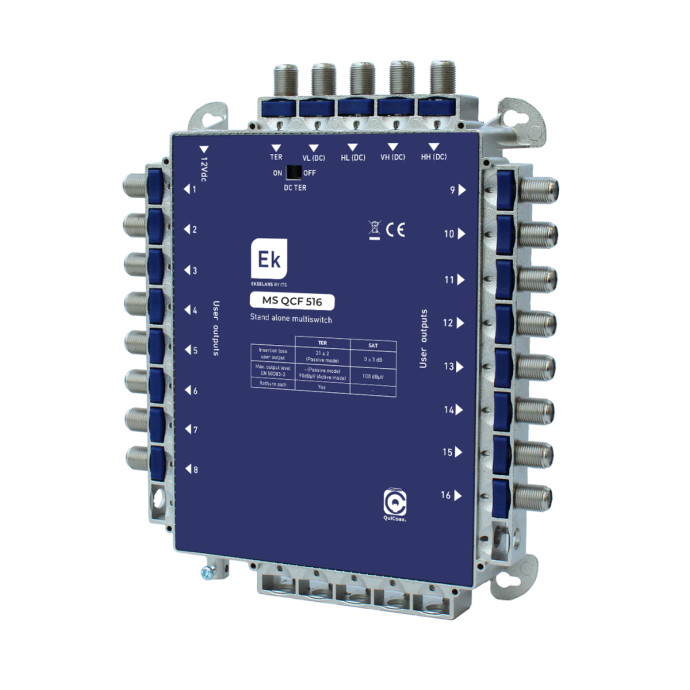

The MS QCF 516 is a multiswitch of the QuiCoax F series from Ekselans, which works in final cascade mode and is independent. It has 5 inputs: 4 of them are satellite for all polarities and another terrestrial. It has 16 outputs for users. It includes the F connectors, but you can convert it to QuiCoax by removing the F connectors.

Its QuiCoax connection system is very easy to use as no tools are required, reducing installation time. In addition, it guarantees excellent connections without losing quality and reducing installation space, since we reduce the use of connectors.

This multiswtich has a high output level and a great linearity in all its bands with a minimum consumption. It is powered at 12Vdc (power supply not included, indicated power supplies FA 2600P and FA 1210).

-
+

Technical Specifications of the EK QCF 516 Cascade Multiswitch with 4 Sat and 1 Terrestrial Inputs and 16 Outputs MS QCF 516

REFERENCE   MS QCF 516
Code   90038
Type Star/End Cascade
In   Num. 5 (1x TER + 4x SAT)
Out User 16
Frequency range TER MHz 5 -790
SAT 950 - 2150
Bypass losses TER dB 17 ± 2 (1-8)
TER 19 ± 2 (9-16)
TER X
SAT 0 ± 3 (1-8)
SAT   3 ± 3 (9-16)
SAT   X
Maximum output level
(DIN 45004B-35dBc)
SAT dBµV 100
Isolation Between entries (SAT-SAT) dB >28
Between entries (SAT-TER) >30
Power (external) LNB mA 210 (max) / LNB
TER amplification   ON/OFF DC PASS
Line amplifiers (AMP) Vdc 12
External source consumption LNBs mA 300
TER mast amplifier 70
Consumption from STB Multiswitch < 40 / STB Activo
Work temperature   ºC -20…+60
Dimensions (An x Al x Fo)   mm 243 x 120 x 35
More Information
EAN 8436597792394
Hight 0.050
Length 0.260
Width 0.190
System SAT SAT Multiswitch
MANUFACTURER SERIE SAT Cascade
Color Silver
# Input satellites 4
# Terrestrial inputs 1
# Inputs 5
#User outputs 16
Gain (dB) 21
Power External (not provided)
Product Brand EKSELANS
Write Your Own Review
You're reviewing:Star/Cascade End Multiswitch 5Ex16S Sat/Terr 21dB QuiCoax by EK
Your Rating
File Label Size Download
pdf Ficha Técnica Multiswitch Estrella/Final de Cascada 5Ex16S Sat/Terr 21dB con FA Incluida de EK 198.2 KB Download
