Star/Cascade End Multiswitch 5Ex8S Sat/Terr 15dB by EK
EK Multiswitch Cascade of 4 Sat and 1 Terrestrial Inputs and 8 Outputs MS QC 58
A cascaded multiswitch is a device used in satellite and terrestrial television distribution systems that allows multiple receivers to be connected to a single antenna. To expand the number of outputs, the device allows serial or cascade connection, without signal loss. It is used in large buildings or residential complexes where many TV connections are required.

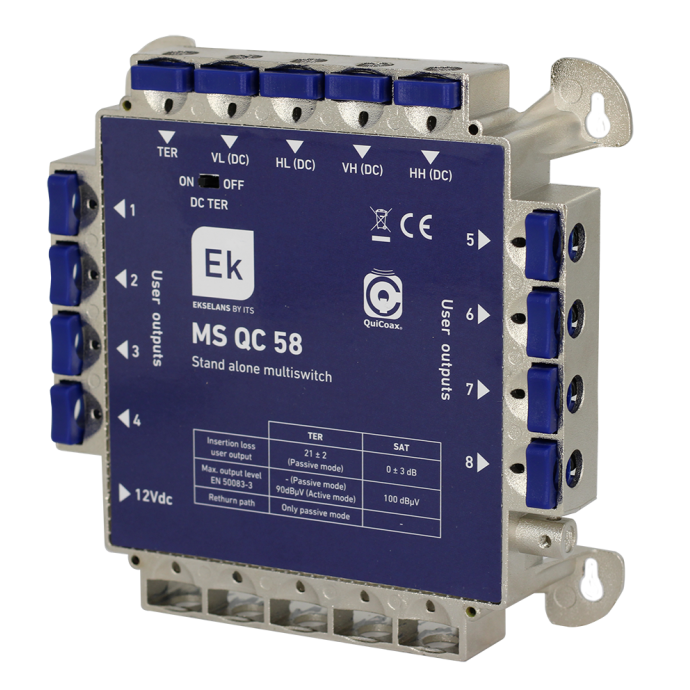

The MS QC 58 is a multiswitch of the QuiCoax F series from Ekselans, which works in final cascade mode and is independent. It has 5 inputs: 4 of them are satellite for all polarities and another terrestrial. It has 8 outputs for users.
Its QuiCoax connection system is very easy to use as no tools are required, reducing installation time. In addition, it guarantees excellent connections without losing quality and reducing installation space, since we reduce the use of connectors.
This multiswtich has a high output level and a great linearity in all its bands with a minimum consumption. It is powered at 12Vdc (power supply not included, indicated power supplies FA 2600P and FA 1210).
