Star/Cascade End Multiswitch 9Ex16S Sat/Terr 21dB QuiCoax F by EK
Multiswitch Cascade of 8 Sat and 1 Terrestrial Inputs and 16 Outputs MS QCF 916 from EK
A cascaded multiswitch is a device used in satellite and terrestrial television distribution systems that allows multiple receivers to be connected to a single antenna. To expand the number of outputs, the device allows serial or cascaded connection without loss of signal. It is used in large buildings or residential complexes where many television connections are required.

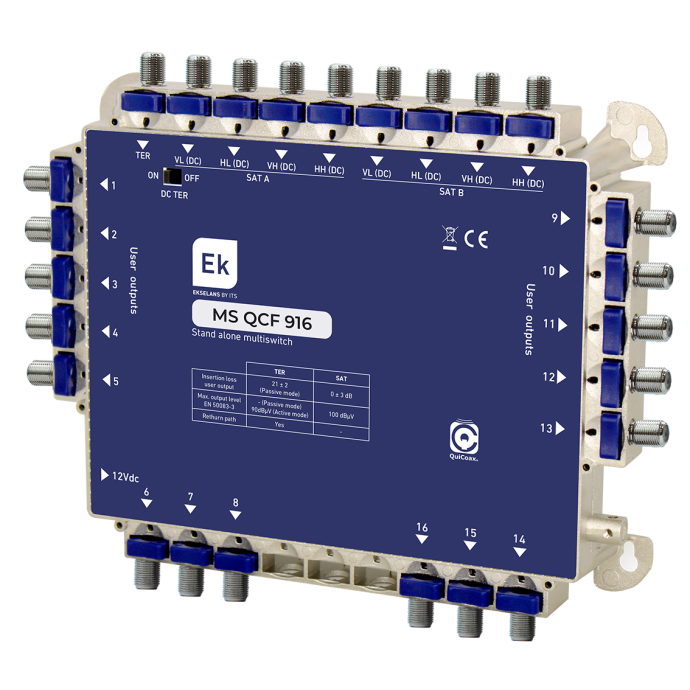

The MS QCF 916 is a multiswitch of the QuiCoax F series from Ekselans, which works in end cascade mode and is independent. It has 9 inputs: 8 of them are satellite for all polarities and another terrestrial. It has 16 outputs for users. It includes the F connectors, but you can convert it to QuiCoax by removing the F connectors.
Its QuiCoax connection system is very easy to use as no tools are required, reducing installation time. In addition, it guarantees excellent connections without losing quality and reducing installation space, since we reduce the use of connectors.
This multiswtich has a high output level and a great linearity in all its bands with a minimum consumption. It is powered at 12Vdc (power supply not included, indicated power supplies FA 2600P and FA 1210).
